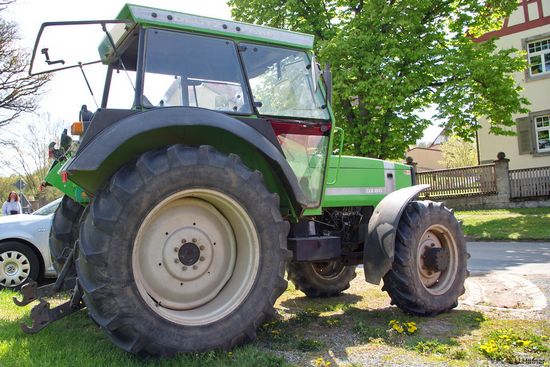

Deutz-Fahr DX 80

Production: 1982 - 1983

Production
Manufacturer:	Deutz-Fahr

Deutz-Fahr DX 80 Power
Engine:	75 hp 55.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD optional
Transmissions:	15-speed
18-speed

Hydraulics
Pump flow:	10.6 gpm 40.1 lpm

Tractor hitch
Rear lift:	8379 lbs 3800 kg

Power Take-off (PTO)
Rear RPM:	540, 1000

Engine Detail
Deutz
diesel
4-cylinder
Displacement:	249.33 ci 4.1 L
Bore/Stroke:	3.94x4.84 inches 100 x 123 mm
Power:	75 hp 55.9 kW
Rated RPM:	2300

Dimensions
Wheelbase:	94.49 inches 240 cm
Length:	161.02 inches 408 cm
Height:	105.12 inches 267 cm
Weight:	7938 lbs 3600 kg (8599 MFWD)
