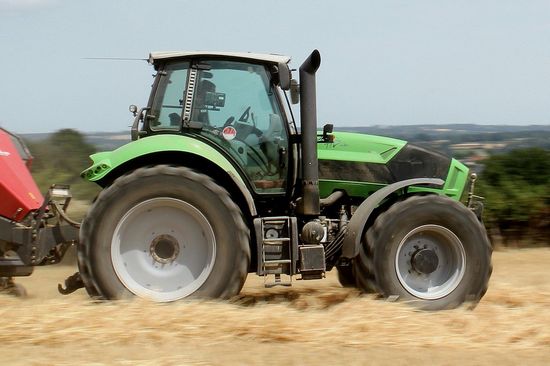

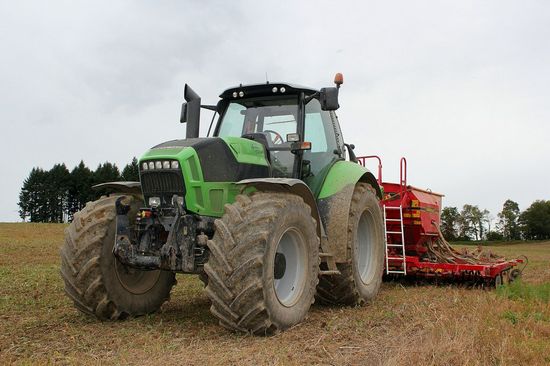

Deutz-Fahr Agrotron TTV 630
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Deutz-Fahr |
| Type: | Row-Crop tractor |
Deutz-Fahr TTV 630 Power | |
| Engine (net): | 203 hp 151.4 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | automatic front and rear differential locks |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. Mechical or semi-active pneumatic suspension optional. |
Hydraulics | |
| Type: | load sensing |
| Valves: | 4 to 7 |
| Pump flow: | 29.1 gpm 110.1 lpm |
| 42.3 gpm 160.1 lpm *Optional. | |
| Steering flow: | 11.6 gpm 43.9 lpm |
Tractor hitch | |
| Rear Type: | III/II |
| Control: | position and draft control |
| Rear lift: | 22046 lbs 10000 kg |
| Front Hitch: | III/II*Optional. |
| Front lift: | 9920.8 lbs 4500 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/540E/1000/1000E*35mm shaft with 6 or 21 splines. |
| Engine RPM: | 540@1946 540E@1645 1000@1946 1000E@1645 |
| Front PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Front RPM: | 1000*35mm 6-spline shaft |
| Engine RPM: | 1000@1960 1000E@1600 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 200 |
| Battery volts: | 12 |
| Battery AH: | 190 |
Engine Detail | |
| Deutz TCD 2012 L6 4V | |
| turbocharged intercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 369.6 ci 6.1 L |
| Bore/Stroke: | 3.98x4.96 inches 101 x 126 mm |
| Rated Power (ECE R24): | 203 hp 151.4 kW |
| Maximum Power (ECE R24): | 222 hp 165.5 kW |
| Fuel system: | common rail |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 5.4 hp 4.0 kW |
| Oil change: | 500 h |
Transmission | |
| Oil capacity: | 109.9 qts 104.0 L |
Dimensions | |
| Wheelbase: | 110.9 inches 281 cm |
| Length: | 189.3 inches 480 cm |
| Width: | 107.1 inches 272 cm |
| Height (cab): | 124.3 inches 315 cm |
| Weight: | 15930 lbs 7225 kg |
