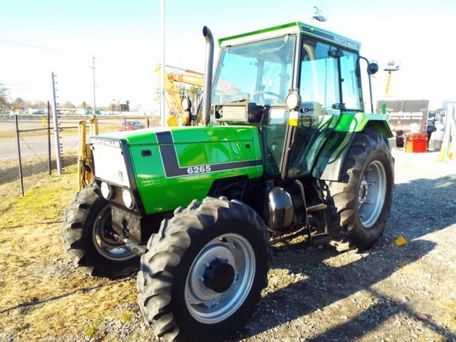

Deutz-Allis 6265

Production: 1986 - 1989

Production
Manufacturer:	Deutz-Allis
Type:	Utility tractor
Factory:	Germany

Deutz-Allis 6265 Power
Engine:	70 hp 52.2 kW
PTO (claimed):	65 hp 48.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	hydraulic drum
Cab:	Four-post ROPS. StarCab optional.
Transmission:	12-speed partially synchronized

Capacity
ROPS Fuel:	24 gal 90.8 L
Cab Fuel:	28 gal 106.0 L
Hydraulic system:	4 gal 15.1 L

Hydraulics
Type:	open center
Capacity:	4 gal 15.1 L
Pressure:	2358 psi 162.6 bar
Valves:	1 to 3
Pump flow:	11.4 gpm 43.1 lpm
Total flow:	17.7 gpm 67.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	7275 lbs 3299 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Deutz F4L 912
diesel
4-cylinder
air-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Power:	70 hp 52.2 kW
Rated RPM:	2350
Starter volts:	12
Oil capacity:	10.5 qts 9.9 L

Transmission
Transmission:	Triple-range
Type:	partially synchronized
Gears:	12 forward and 4 reverse
Clutch:	dry disc
Four synchronized gears in three ranges, plus reverse range.

Dimensions
2WD Wheelbase:	91.5 inches 232 cm
4WD Wheelbase:	94 inches 238 cm
Width:	82.3 inches 209 cm
Height (ROPS):	97.3 inches 247 cm
Height (cab):	101.3 inches 257 cm
Rear tread:	59 to 78.8 inches 149 to 200 cm
