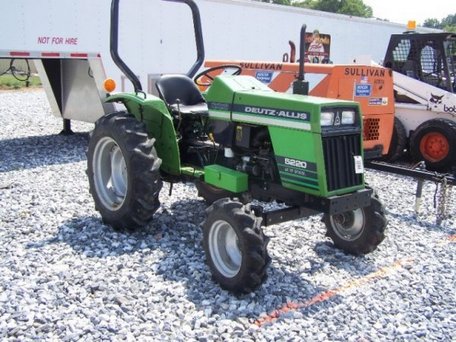

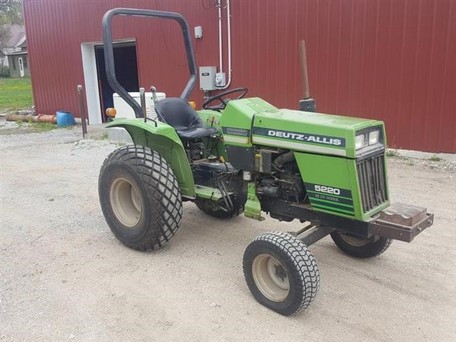

Deutz-Allis 5220
Type: Compact Utility Tractors
Contents:
Production | |
| Distributor: | Deutz-Allis |
| Manufacturer: | Hinomoto |
| Type: | Compact Utility tractor |
| Original price: | $10,000 (1989) |
| The Deutz-Allis 5220 is similar to the Hinomoto E2302/E2304, and the Massey 1033. | |
Deutz-Allis 5220 Power | |
| Engine (gross): | 26 hp 19.4 kW |
| PTO (claimed): | 21 hp 15.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | manual |
| power optional | |
| Brakes: | differential wet disc |
| Cab: | Two-post ROPS with optional canopy. Optional cab. |
| Transmission: | 12-speed synchromesh |
Capacity | |
| Fuel: | 7.1 gal 26.9 L |
| Hydraulic system: | 6.6 gal 25.0 L |
| Steering: | 1 qts 0.9 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 6.6 gal 25.0 L |
| Valves: | 0 to 2 |
| Total flow: | 4.6 gpm 17.4 lpm |
| Steering cap.: | 1 qts 0.9 L |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at ends): | 1,958 lbs 888 kg |
Power Take-off (PTO) | |
| Rear PTO: | live |
| Rear RPM: | 540 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Toyosha | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 86.96 ci 1.4 L |
| Bore/Stroke: | 3.23x3.54 inches 82 x 90 mm |
| Power (gross): | 26 hp 19.4 kW |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Compression: | 23:1 |
| Rated RPM: | 2500 |
| Idle RPM: | 750-2700 |
| Starter volts: | 12 |
| Oil capacity: | 3.7 qts 3.5 L |
| Coolant capacity: | 4.2 qts 4.0 L |
Transmission | |
| Type: | synchromesh |
| Gears: | 12 forward and 4 reverse |
| Oil capacity: | 26.4 qts 25.0 L |
Dimensions | |
| Wheelbase: | 63 inches 160 cm (2WD) |
| 62.8 inches 159 cm (4WD) | |
| Length: | 111.6 inches 283 cm (2WD) |
| 111.8 inches 283 cm (4WD) | |
| Width: | 49.8 inches 126 cm (2WD) |
| 50.6 inches 128 cm (4WD) | |
| Weight: | 2,222 lbs 1007 kg (2WD) |
| 2,398 lbs 1087 kg (4WD) | |
| Clearance (front axle): | 16.1 inches 40 cm (2WD) |
| 11.8 inches 29 cm (4WD) | |
| Clearance (rear axle): | 13.8 inches 35 cm |
