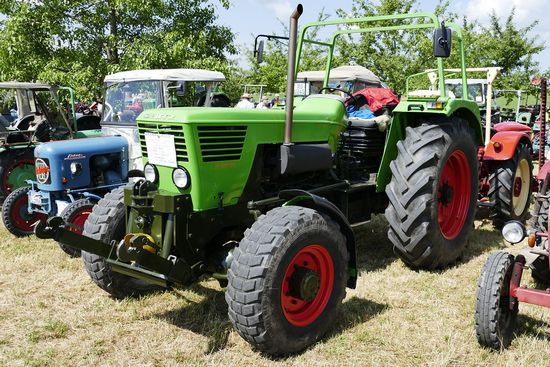

Deutz D 9006

Production: 1967 - 1970

Production
Manufacturer:	Deutz

Variants
D9006:	2WD
D9006A:	4WD

Deutz D 9006 Power
Engine:	92 hp 68.6 kW

Mechanical
Chassis:	4x2 2WD (D9006)
4x4 MFWD 4WD
Steering:	power
Cab:	Open operator station.
Transmissions:	6-speed
12-speed

Hydraulics
Pump flow:	9.2 gpm 34.8 lpm

Tractor hitch
Rear lift:	6615 lbs 3000 kg

Power Take-off (PTO)
Rear RPM:	540, 1000

Engine Detail
Deutz
diesel
6-cylinder
Displacement:	344.89 ci 5.7 L
Bore/Stroke:	3.94x4.72 inches 100 x 120 mm
Power:	92 hp 68.6 kW
Rated RPM:	2300

Dimensions
Wheelbase:	100.39 inches 254 cm
Length:	165.75 inches 421 cm
Height:	96.46 inches 245 cm
2WD Weight:	9261 lbs 4200 kg
4WD Weight:	9922 lbs 4500 kg
