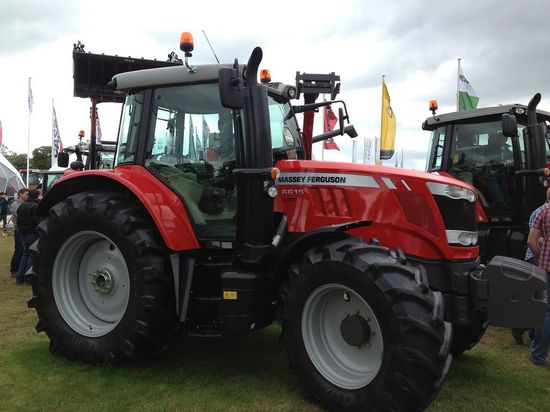

Massey Ferguson 6615
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson (a part of AGCO) |
| Type: | Utility tractor |
| Original price: | $147,215 (2014 Dyna-VT Deluxe ) |
Massey Ferguson 6615 Power | |
| Engine: | 135 hp 100.7 kW |
| PTO (claimed): | 110 hp 82.0 kW |
| 115 hp 85.8 kW (Dyna-VT) | |
Mechanical | |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic front and rear |
| Steering: | hydraulic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air conditioning. Optional deluxe cab with mechanical suspension. Optional premium cab with active hydraulic suspension. |
| Transmissions: | 16-speed four-speed power shift |
| 24-speed six-speed power shift | |
| continuously variable transmission (CVT) | |
Hydraulics | |
| Type: | open center |
| Twin Flow open center (optional) | |
| closed center (optional) | |
| Valves: | up to 4 |
| SCV flow: | 15 gpm 56.8 lpm |
| 26 gpm 98.4 lpm (Twin Flow) | |
| 29 gpm 109.8 lpm (closed) | |
Tractor hitch | |
| Rear Type: | III |
| Control: | electronic draft control |
| Rear lift (at 24"/610mm): | 11400 lbs 5171 kg |
| Front lift: | 7050 lbs 3197 kg |
| Drawbar: | Cat. 2 |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| 540E/540/1000/1000E | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 240 (twin 120A) |
| Batteries: | 2 |
| Battery CCA: | 600 |
| Battery volts: | 12 |
Engine Detail | |
AGCO Power | |
| wastegate turbocharger and intercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 299 ci 4.9 L |
| Bore/Stroke: | 4.252x5.276 inches 108 x 134 mm |
| Emissions: | Interim Tier IV |
| Emission control: | slective catalytic reduction (SCR) with diesel oxidation catalyst (DOC) |
| Power: | 135 hp 100.7 kW |
| 140 hp 104.4 kW (Dyna-VT) | |
| Maximum Power: | 145 hp 108.1 kW |
| 150 hp 111.9 kW (Dyna-VT) | |
| Fuel system: | high pressure common rail |
| Cooling system: | electronically controlled viscous fan |
| Air cleaner: | dual dry element |
| Pre-heating: | block heater |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 105 inches 266 cm |
| Length: | 184.7 inches 469 cm |
| Height (cab): | 115.5 inches 293 cm |
| Weight: | 12500 lbs 5670 kg |
| Front axle: | 4WD |
| Front axle: | Suspended 4WD |
| Rear axle: | Flange |
| Rear axle: | Bar: 3.23 by 80 inches 82 by 2032 mm |
| Rear axle: | Bar: 3.74 by 90 inches 94 by 2286 mm |
