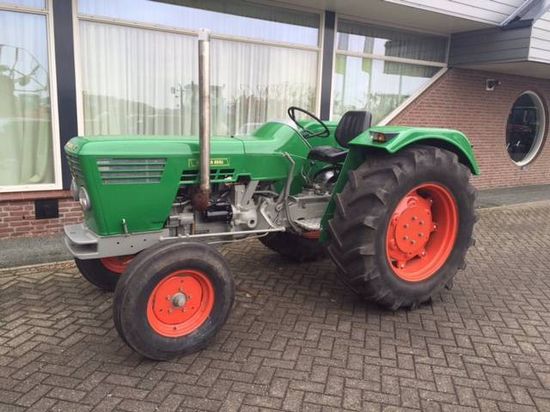

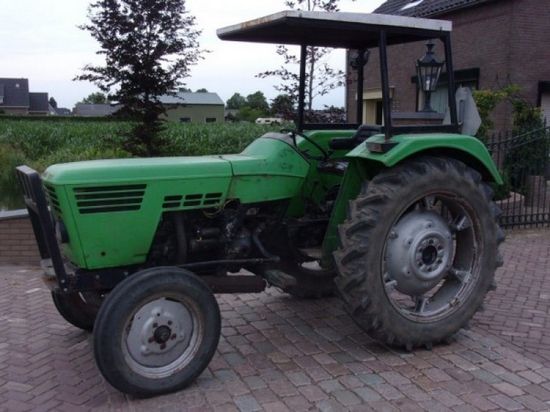

Deutz D 5006

Production: 1968 - 1974

Contents:

Production

Manufacturer:Deutz

Variants

D5006:2WD
D5006A:4WD

Deutz D 5006 Power

Engine:48 hp 35.8 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD (D5006A)
Transmissions:8-speed unsynchronized
8-speed synchromesh
12-speed synchromesh with creeper

Hydraulics

Pump flow:7.2 gpm 27.3 lpm

Tractor hitch

Rear lift:4189 lbs 1900 kg

Power Take-off (PTO)

Rear RPM:540, 1000

Engine Detail

Deutz F3L912
diesel
3-cylinder
air-cooled
Displacement:172.50 ci 2.8 L
Bore/Stroke:3.9370x4.72 inches 100 x 120 mm
Power:48 hp 35.8 kW
Rated RPM:2300

Dimensions

Wheelbase:81.10 inches 205 cm
Length:136.61 inches 346 cm
Height:105.91 inches 269 cm
Operating weight:4,520 lbs 2050 kg
