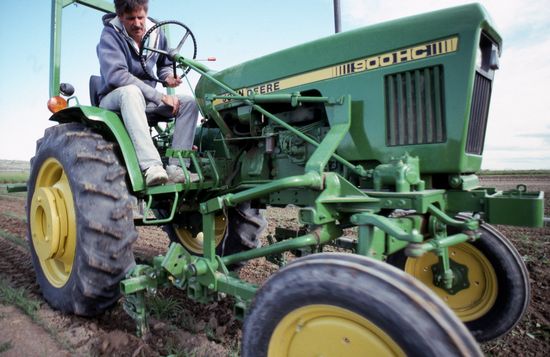

Deere 900HC

Production: 1986 - 1988

Production
Manufacturer:	John Deere
Type:	High-Clearance tractor
Original price:	$13,000 (1990 )

John Deere 900HC Power
Engine (gross):	25 hp 18.6 kW
Engine (net):	24 hp 17.9 kW
PTO (claimed):	22 hp 16.4 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	foot-operated
Steering:	manual
Brakes:	dry internal expanding shoe
Cab:	Two-post ROPS. Optional canopy.
Transmission:	8-speed

Hydraulics
Type:	open center
Pressure:	2030 psi 140.0 bar
Total flow:	3.1 gpm 11.7 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	1,800 lbs 816 kg

Power Take-off (PTO)
Rear PTO:	live
Clutch:	dry dual state
Rear RPM:	540 (1.375)
Engine RPM:	540@2257

900HC Serial Numbers
1986:	1001
1987:	1710
1988:	2127
Final:	2276

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	25
Battery volts:	12

Engine Detail
John Deere
diesel
3-cylinder
liquid-cooled inline valve-in-head
Displacement:	78.2 ci 1.3 L
Bore/Stroke:	3.15x3.25 inches 80 x 83 mm
Power (gross):	25 hp 18.6 kW
Air cleaner:	dry
Compression:	21:1
Rated RPM:	2600
Starter volts:	12
Oil capacity:	5 qts 4.7 L
Coolant capacity:	5.8 qts 5.5 L

Transmission
Gears:	8 forward and 2 reverse
Clutch:	dry
Oil capacity:	29.5 qts 27.9 L

Dimensions
Wheelbase:	73 inches 185 cm
Length:	126.2 inches 320 cm
Width:	55.1 inches 139 cm
Shiping weight:	2,865 lbs 1299 kg
Clearance (front axle):	23 inches 58 cm
Clearance (rear axle):	26 inches 66 cm
Front tread:	42 to 51 inches 106 to 129 cm
Rear tread:	42 to 58 inches 106 to 147 cm
