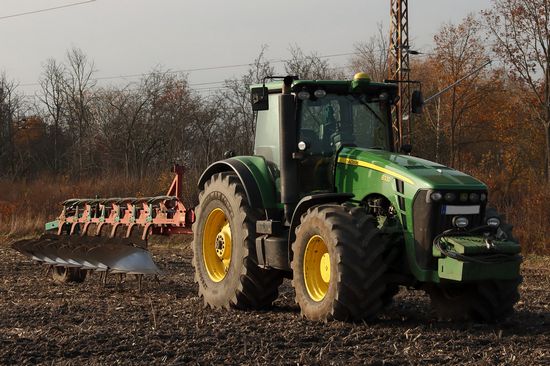

Deere 8330

Production: 2006 - 2009

Production

Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA

Variants

row-crop tractor
crawler tractor

John Deere 8330 Power

Engine (gross):275 hp 205.1 kW
Engine (max):300 hp 223.7 kW
PTO (claimed):225 hp 167.8 kW
Drawbar (tested):199.42 hp 148.7 kW
PTO (tested):261.5 hp 195.0 kW

Mechanical

Chassis:4x4 MFWD 4WD
4x4 Independent Link Suspension (ILS) MFWD 4WD
Steering:power
Brakes:wet disc
Cab:CommandView cab standard.
Transmission:16-speed full power shift

Capacity

Fuel:180 gal 681.3 L
Hydraulic system:9.5 gal 36.0 L
14.5 gal 54.9 L (with aux reservoir)

Hydraulics

Type:closed center PFC
Capacity:9.5 gal 36.0 L
14.5 gal 54.9 L (with aux reservoir)
Pressure:2098 psi 144.7 bar
Valves:3 to 5
Pump flow:31.7 gpm 120.0 lpm
Total flow:44 gpm 166.5 lpm
60 gpm 227.1 lpm (optional)

Tractor hitch

Rear Type:III/IIIN
IVN/III (optional)
Rear lift (at 24"/610mm):12,400 lbs 5624 kg
15,200 lbs 6894 kg (optional)
18,300 lbs 8300 kg (optional)

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:1000
540/1000 (optional)
Engine RPM:540@1817 1000@2000

8330 Serial Numbers

Location:Serial number plate on the rear of the tractor.

Electrical

Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery CCA:925
Battery volts:12

Engine Detail

John Deere PowerTech 6090HRW
variable geometry turbocharger diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:548 ci 9.0 L
Bore/Stroke:4.661x5.354 inches 118 x 136 mm
Rated Power (EC 97/98):275 hp 205.1 kW
Maximum Power (EC 97/68):300 hp 223.7 kW
Air cleaner:dual paper elements
Compression:16.3:1
Rated RPM:2100
Idle RPM:900-2200
Operating RPM:1500-2100
Starter volts:12
Oil capacity:25.5 qts 24.1 L
26 qts 24.6 L (ILS)
Coolant capacity:42.3 qts 40.0 L

Transmission

Transmission:John Deere PowerShift
Type:full power shift
Gears:16 forward and 4 reverse
Clutch:hydraulic wet disc
Oil capacity:160 qts 151.4 L
168 qts 159.0 L (ILS)
Full power shift transmission operated with right-hand control lever. Transmission defaults to gear 7-forward and 2-reverse on startup, although this may be re-programmed. Automatic PowerShift (APS) enables automatic shifting to maintain engine load.

Dimensions

Wheelbase:118.9 inches 302 cm (ILS)
120.1 inches 305 cm (MFWD)
Length:219.1 inches 556 cm
Height:122.9 inches 312 cm
Weight:23,747 lbs 10771 kg
25,147 lbs 11406 kg (ILS)
Ground clearance:17.4 inches 44 cm
