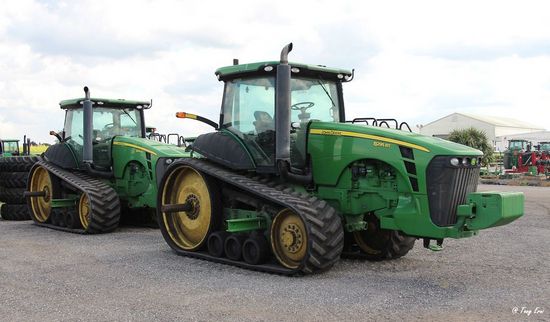

Deere 8295RT
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Agricultural Crawler tractor |
| Factory: | Waterloo, Iowa, USA |
Variants | |
| wheeled tractor |
John Deere 8295RT Power | |
| Engine (gross): | 295 hp 220.0 kW |
| Engine (net): | 284 hp 211.8 kW |
| Engine (max): | 322 hp 240.1 kW |
| PTO (claimed): | 235 hp 175.2 kW |
| Drawbar (tested): | 212.62 hp 158.6 kW |
| PTO (tested): | 279.14 hp 208.2 kW |
Mechanical | |
| Chassis: | crawler |
| Steering: | electro-hydraulic power |
| Brakes: | hydraulic wet disc |
| Cab: | CommandView cab standard with heat and air-conditioning. Optional automatic temperature control, mirros, and front/rear windshield wipers. |
| Transmission: | 16-speed full power shift |
Capacity | |
| Fuel: | 200 gal 757.0 L |
| Hydraulic system: | 68.3 gal 258.5 L |
Hydraulics | |
| Type: | closed center pressure-flow compensated |
| Capacity: | 68.3 gal 258.5 L |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 3 to 5 |
| Pump flow: | 35 gpm 132.5 lpm |
| Total flow: | 44 gpm 166.5 lpm |
| 60 gpm 227.1 lpm (optional) | |
Tractor hitch | |
| Rear Type: | III/IIIN |
| IVN/III | |
| Rear lift (at 24"/610mm): | 16,800 lbs 7620 kg |
| 19,300 lbs 8754 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1-3/4) |
8295RT Serial Numbers | |
| Location: | Right side of tractor. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| turbocharged aftercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement: | 548 ci 9.0 L |
| Bore/Stroke: | 4.661x5.354 inches 118 x 136 mm |
| Emissions: | Tier 3 |
| Stage IIIA | |
| Rated Power (ECE R24): | 284 hp 211.8 kW |
| Rated Power (EC 97/98): | 295 hp 220.0 kW |
| Maximum Power (EC 97/68): | 322 hp 240.1 kW |
| Air cleaner: | dual paper elements |
| Compression: | 16.3:1 |
| Rated RPM: | 2100 |
| Operating RPM: | 1500-2100 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 42.3 qts 40.0 L |
Transmission | |
| Transmission: | John Deere PowerShift |
| Type: | full power shift |
| Gears: | 16 forward and 4 reverse |
| Oil capacity: | 273.2 qts 258.6 L |
| Oil type: | JD Hy-Gard |
Dimensions | |
| Wheelbase: | 99 inches 251 cm |
| Length: | 223.5 inches 567 cm |
| Width: | 150 inches 381 cm |
| Height (cab): | 130.8 inches 332 cm |
| Shiping weight: | 34,460 lbs 15631 kg |
| Clearance (rear axle): | 24.5 inches 62 cm |
| Clearance (drawbar): | 14.6 inches 37 cm |
