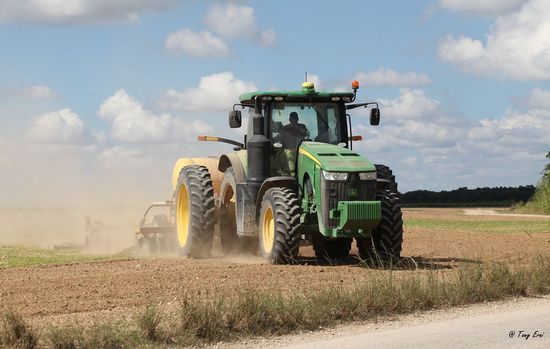

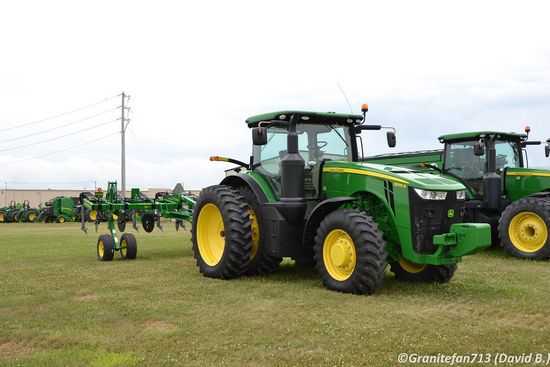

John Deere 8295R
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
Variants | |
| crawler tractor |
John Deere 8295R Power | |
| Engine (gross): | 295 hp 220.0 kW |
| Engine (net): | 284 hp 211.8 kW |
| PTO (claimed): | 242 hp 180.5 kW |
| Drawbar (tested): | 222.05 hp 165.6 kW |
| PTO (tested): | 281.46 hp 209.9 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | CommandView cab standard with heat and air-conditioning. Optional automatic temperature controls, electronically-controlled mirrors, sun shades, instructor seat, and front/rear windshield wipers. |
| Transmission: | 16-speed full power shift |
Capacity | |
| Fuel: | 180 gal 681.3 L |
| Hydraulic system: | 40 gal 151.4 L |
| 42 gal 159.0 L (ILS) | |
Hydraulics | |
| Type: | closed center, pressrue and flow compensated |
| Capacity: | 40 gal 151.4 L |
| 42 gal 159.0 L (ILS) | |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 3 to 5 |
| Pump flow: | 35 gpm 132.5 lpm |
| Total flow: | 44 gpm 166.5 lpm |
| 60 gpm 227.1 lpm (optional) | |
Tractor hitch | |
| Rear Type: | III/IIIN |
| IVN/III | |
| Rear lift: | 15,200 lbs 6894 kg |
| 17,300 lbs 7847 kg (optional) | |
| 18,300 lbs 8300 kg (optional) | |
| Front Hitch: | optional with ILS |
| Front lift: | 11,000 lbs 4989 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1-3/4) |
| 540/1000 (1-3/8 optional) | |
8295R Serial Numbers | |
| Location: | Rear of tractor to right of PTO. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| variable geometry turbocharger diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement: | 548 ci 9.0 L |
| Bore/Stroke: | 4.661x5.354 inches 118 x 136 mm |
| Emissions: | Tier 3 |
| Stage IIIA | |
| Rated Power (ECE R24): | 284 hp 211.8 kW |
| Rated Power (EC 97/98): | 295 hp 220.0 kW |
| Air cleaner: | dual paper elements |
| Compression: | 16.3:1 |
| Rated RPM: | 2100 |
| Operating RPM: | 1500-2100 |
| Starter volts: | 12 |
| Coolant capacity: | 42.3 qts 40.0 L |
Transmission | |
| Transmission: | John Deere PowerShift |
| Type: | full power shift |
| Gears: | 16 forward and 4 reverse |
| Oil capacity: | 160 qts 151.4 L |
| 168 qts 159.0 L (ILS) | |
Dimensions | |
| Wheelbase: | 120.1 inches 305 cm |
| 118.9 inches 302 cm (ILS) | |
| Length: | 241.3 inches 612 cm |
| Height (cab): | 127.7 inches 324 cm |
| Ground clearance: | 27 inches 68 cm |
| 23.2 inches 58 cm (ILS) | |
