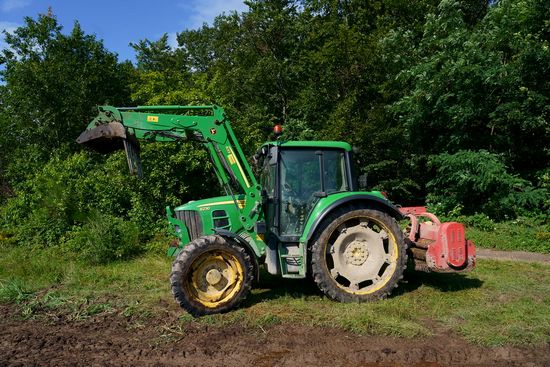

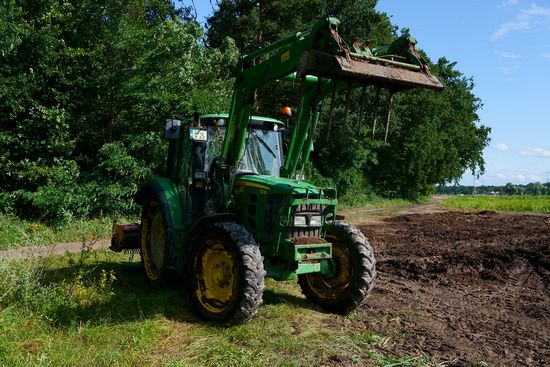

Deere 6230
Contents:
Production | |
| Manufacturer: | John Deere |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| Original price: | $49,565 (2010) |
Variants | |
| premium cab and upgraded features |
John Deere 6230 Power | |
| Engine (gross): | 95 hp 70.8 kW |
| PTO (claimed): | 75 hp 55.9 kW (2007-2009) |
| 76 hp 56.7 kW (2010+) | |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post ROPS. Cab optional. |
| Transmissions: | 12-speed fully synchronized |
| 16-speed synchronized with power shuttle | |
| 16-speed partial power shift | |
| 24-speed partial power shift | |
Capacity | |
| Fuel: | 43.6 gal 165.0 L |
| 48 gal 181.7 L (optional) | |
| Hydraulic system: | 13.7 gal 51.9 L |
Hydraulics | |
| Type: | open-center load sensing |
| closed-center pressure-flow compensated (optional) | |
| Capacity: | 13.7 gal 51.9 L |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 1 to 3 |
| Total flow: | 21.1 gpm 79.9 lpm |
| 29 gpm 109.8 lpm (optional) | |
Tractor hitch | |
| Rear Type: | II/III |
| Rear lift (at 24"/610mm): | 4,450 lbs 2018 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| 540/1000 | |
6230 Serial Numbers | |
| Location: | On the main tractor frame, right side, above the front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 115 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere 4045HL280 PowerTech E | |
| turbocharged diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled vertical inline | |
| Original engine, used in the basic 6230 from 2007 through the 2009 model year. | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Tier III |
| Rated Power (EC 97/98): | 94 hp 70.1 kW |
| Air cleaner: | dual dry element |
| Compression: | 19:1 |
| Rated RPM: | 2300 |
| Idle RPM: | 850-2460 |
| Operating RPM: | 1500-2300 |
| Torque: | 282 lb-ft 382.4 Nm |
| Torque RPM: | 1500 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 12 |
| Starter power: | 4.0 hp 3.0 kW |
| Oil capacity: | 16.8 qts 15.9 L |
| Coolant capacity: | 28 qts 26.5 L (ROPS) |
| 30.8 qts 29.1 L (cab) | |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 94.5 inches 240 cm |
| Ground clearance: | 18.5 inches 46 cm |
