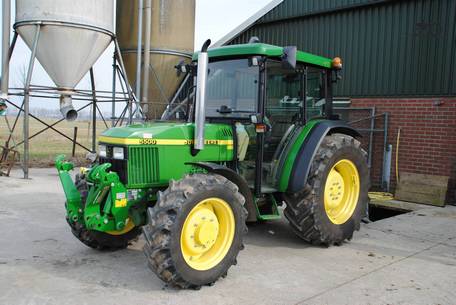

Deere 5500

Production: 1996 - 2000

Production
Distributor:	John Deere
Manufacturer:	Carraro
Type:	Utility tractor
Factory:	Italy

John Deere 5500 Power
Engine (net):	80 hp 59.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydrostatic power
Brakes:	wet disc
Trailer brakes:	hydraulic*Optional
Cab:	Cab standard.
Transmissions:	12-speed partially synchronized
24-speed partially synchronized

Hydraulics
Type:	open center
Pump flow:	11.4 gpm 43.1 lpm
Steering flow:	7 gpm 26.5 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift:	5291 lbs 2399 kg

Power Take-off (PTO)
Rear RPM:	540/540E
540/1000

5500 Serial Numbers
Location:	Serial number plate on left side of frame, above the front axle.

Electrical
Ground:	negative
Charging system:	alternator
ROPS Charging amps:	40
Cab Charging amps:	60
Battery volts:	12
Battery AH:	100

Engine Detail
John Deere 4039TAT01
turbocharged
4-cylinder
liquid-cooled
Displacement:	274.6 ci 4.5 L
Bore/Stroke:	4.19x5.00 inches 106 x 127 mm
Rated Power (ECE R24):	80 hp 59.7 kW
Compression:	17.8:1
Rated RPM:	2400
Idle RPM:	800-2600
Operating RPM:	1500-2400
Torque:	219.8 lb-ft 298.0 Nm
Torque RPM:	1500
Firing order:	1-3-4-2
Starter:	electric
Starter volts:	12
Starter power:	3.4 hp 2.5 kW
Oil capacity:	9 qts 8.5 L

Dimensions
Wheelbase:	85.8 inches 217 cm
Length:	132 inches 335 cm
Height (cab):	94.5 inches 240 cm
Weight:	6400 lbs 2903 kg
