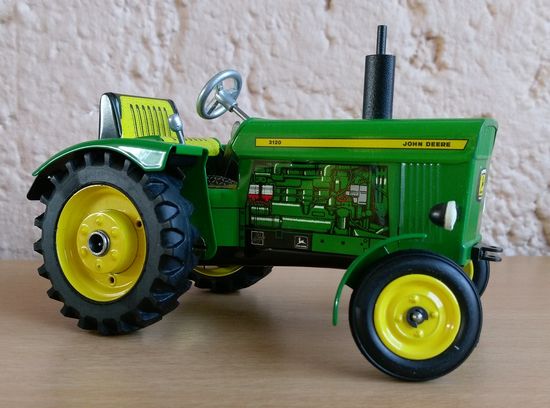

Deere 3120
Contents:
Production | |
| Manufacturer: | John Deere |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 3120 Power | |
| Engine: | 86 hp 64.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station. |
| Transmission: | 12-speed |
3120 Serial Numbers | |
| Location: | Serial number plate on the right side of the 3120 tractor frame, above the front axle. |
Engine Detail | |
| John Deere | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 303 ci 5.0 L |
| Bore/Stroke: | 3.86x4.33 inches 98 x 110 mm |
| Power: | 86 hp 64.1 kW |
| Rated RPM: | 2200 |
| Starter type: | electric |
Transmission | |
| Gears: | 12 forward and 6 reverse |
Dimensions | |
| Wheelbase: | 96.9 inches 246 cm |
| Shiping weight: | 7,600 lbs 3447 kg |
