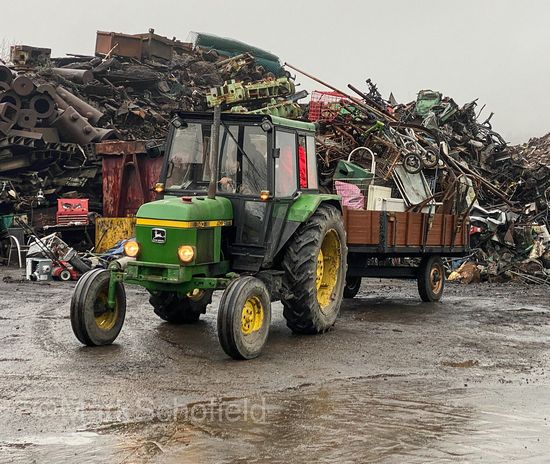

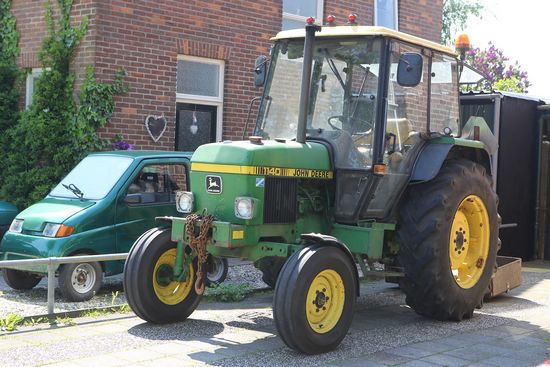

Deere 1140
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 1140 Power | |
| Engine: | 55 hp 41.0 kW |
| PTO (claimed): | 49.6 hp 37.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Four-post ROPS. Cab optional. |
| Transmissions: | 8-speed collar shift |
| 16-speed two-speed power shift | |
Capacity | |
| Fuel: | 20.6 gal 78.0 L |
| Hydraulic system: | 14.5 gal 54.9 L |
Hydraulics | |
| Type: | closed center constant pressure |
| Capacity: | 14.5 gal 54.9 L |
| Pressure: | 2466 psi 170.0 bar |
| Pump flow: | 12.4 gpm 46.9 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | lower-link draft control |
| Rear lift: | 5291 lbs 2399 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic disc |
| Rear RPM: | 540 |
| Engine RPM: | 540@2400 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 55 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 55 |
Engine Detail | |
| John Deere | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 179 ci 2.9 L |
| Bore/Stroke: | 4.19x4.33 inches 106 x 110 mm |
| Power: | 55 hp 41.0 kW |
| Compression: | 16.8:1 |
| Rated RPM: | 2500 |
| Torque: | 136.4 lb-ft 185.0 Nm |
| Torque RPM: | 1400 |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Oil capacity: | 7.4 qts 7.0 L |
| Coolant capacity: | 16.4 qts 15.5 L |
Dimensions | |
| Wheelbase: | 80.7 inches 204 cm |
| Length: | 138 inches 350 cm |
| Width: | 71.3 inches 181 cm *Minimum |
| Height (cab): | 97.3 inches 247 cm |
| Height (exhaust): | 104 inches 264 cm |
| Shiping weight: | 5,300 lbs 2404 kg |
| Ground clearance: | 24.5 inches 62 cm |
| Front tread: | 49.6 to 81 inches 125 to 205 cm |
| Rear tread: | 59.1 to 78.7 inches 150 to 199 cm |
