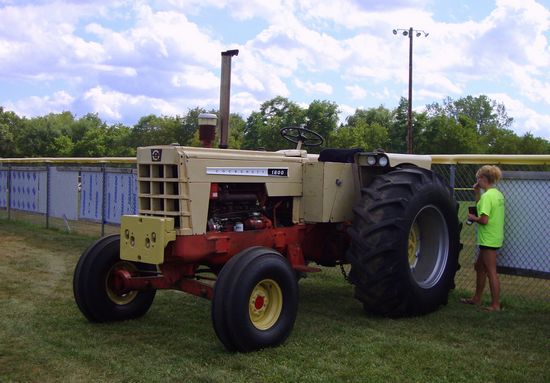

Cockshutt 1800
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Cockshutt |
| Type: | Row-Crop tractor |
| Factory: | Charles City, Iowa, USA |
| Original price: | $5,900 (1964 ) |
Cockshutt 1800 Power | |
| Drawbar (tested): | 68.40 hp 51.0 kW |
| PTO (tested): | 80.72 hp 60.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power assist |
| hydrostatic power (Series C) | |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmissions: | 6-speed gear |
| 12-speed partial power shift | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
1800 Serial Numbers | |
| Location: | Serial plate on instrument panel. |
| 1962: | 124 397 (Series B) |
| 1963: | 129 286 (Series B) |
| Final: | 134 683 (Series B) |
| 1963: | 129 286 (Series C) |
| 1964: | 140 893 (Series C) |
| Final: | 149 818 (Series C) |
Engine Detail | |
| Waukesha-Oliver | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 310 ci 5.1 L |
| Bore/Stroke: | 3.875x4.375 inches 98 x 111 mm |
| Air cleaner: | oil bath |
| Compression: | 16.25:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 109.25 inches 277 cm |
| Length: | 159.5 inches 405 cm |
| Width: | 86.5 inches 219 cm |
| Height (steering wheel): | 79.9 inches 202 cm |
| Front tread: | 9.25/14.5 inches 23/36 cm(tricycle) |
| Front tread: | 60 to 84 inches 152 to 213 cm (wide-front) |
| Front tread: | 66/70.75 inches 167/179 cm(4WD) |
| Rear tread: | 68 to 89.5 inches 172 to 227 cm |
