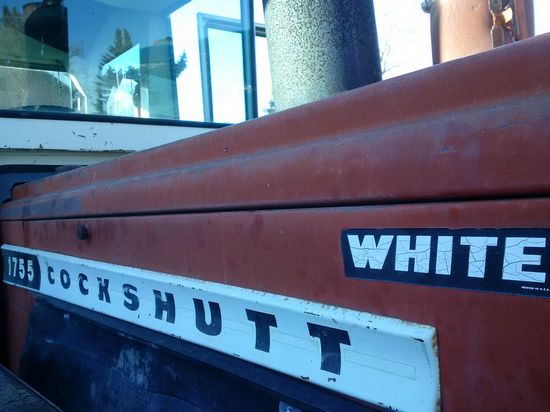

Cockshutt 1755
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Cockshutt |
| Type: | Row-Crop tractor |
| Original price: | $11,500 (1975 ) |
Cockshutt 1755 Power | |
| PTO (claimed): | 86 hp 64.1 kW |
| Drawbar (tested): | 73.87 hp 55.1 kW |
| PTO (tested): | 86.93 hp 64.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | differential hydraulic dry disc |
| Cab: | Open operator station. Optional two-post ROPS and cab. |
| Transmissions: | 6-speed gear |
| 18-speed partial power shift | |
Capacity | |
| Fuel: | 35 gal 132.5 L |
| Hydraulic system: | 6.75 gal 25.5 L |
Hydraulics | |
| Type: | closed center |
| Capacity: | 6.75 gal 25.5 L |
| Pump flow: | 20 gpm 75.7 lpm |
Tractor hitch | |
| Rear Type: | I/II |
| II/III*Optional | |
| Rear lift: | 4,000 lbs 1814 kg |
| 6,000 lbs 2721 kg (Cat 3) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| 1000 | |
1755 Serial Numbers | |
| 1970: | 221-603 |
| 1971: | 226-445 |
| 1972: | 231-415 |
| 1973: | 238-136 |
| 1974: | 245-667 |
| 1975: | 257-515 |
| Final: | 260-346 |
Engine Detail | |
| Waukesha-Oliver | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 310 ci 5.1 L |
| Bore/Stroke: | 3.875x4.375 inches 98 x 111 mm |
| Air cleaner: | dry |
| Compression: | 16:1 |
| Rated RPM: | 2400 |
| Starter volts: | 12 |
| Oil capacity: | 8 qts 7.6 L |
| Coolant capacity: | 20 qts 18.9 L |
Dimensions | |
| 2WD Wheelbase: | 103 inches 261 cm |
| 4WD Wheelbase: | 86.25 inches 219 cm |
| 2WD Length: | 159.5 inches 405 cm |
| 4WD Length: | 152.375 inches 387 cm |
| Width: | 80.625 inches 204 cm *Minimum width |
| Height (steering wheel): | 85.5 inches 217 cm |
| Operating weight: | 9,600 lbs 4354 kg |
| Ballasted weight: | 13,250 lbs 6010 kg |
| 2WD Ground clearance: | 25.5 inches 64 cm |
| 4WD Ground clearance: | 13.5 inches 34 cm |
| 2WD Front tread: | 61.5 to 87.5 inches 156 to 222 cm |
| 4WD Front tread: | 60/70.75/80 inches 152/179/203 cm |
| Rear tread: | 57 to 119.5 inches 144 to 303 cm |
