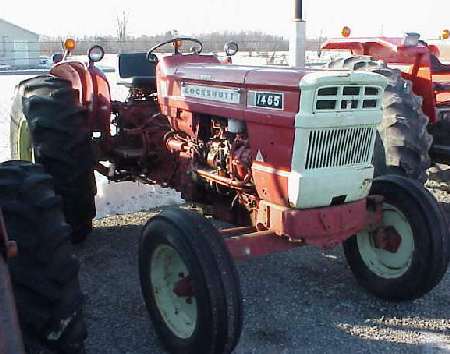

Cockshutt 1465
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Cockshutt |
| Type: | Utility tractor |
| Original price: | $11,000 (1975 ) |
| The Oliver 1465 was built by Fiat, and is similar to the Fiat 750. | |
Cockshutt 1465 Power | |
| Engine: | 77 hp 57.4 kW |
| Drawbar (claimed): | 58 hp 43.3 kW |
| PTO (claimed): | 70 hp 52.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Brakes: | disc |
| Cab: | Open operator station. Optional ROPS and canopy. |
| Transmission: | 7-speed gear |
Hydraulics | |
| Pressure: | 2135 psi 147.2 bar |
| Total flow: | 6.2 gpm 23.5 lpm |
Tractor hitch | |
| Rear Type: | I/II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
1465 Serial Numbers | |
| Location: | Below instrument panel. |
| 1973: | 827183 |
| 1974: | 827580 |
| 1975: | 839424 |
| Final: | 839487 |
Engine Detail | |
| OM C03/70 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 278.3 ci 4.6 L |
| Bore/Stroke: | 4.331x4.7241 inches 110 x 120 mm |
| Power: | 77 hp 57.4 kW |
| Fuel system: | direct injection |
| Compression: | 17:1 |
| Rated RPM: | 2100 |
| Starter volts: | 12 |
Transmission | |
| Type: | gear |
| Gears: | 7 forward and 2 reverse |
Dimensions | |
| Wheelbase: | 92.75 inches 235 cm |
| Length: | 140 inches 355 cm |
| Height (steering wheel): | 68.8 inches 174 cm |
| Shiping weight: | 6700 lbs 3039 kg |
| Ballasted weight: | 10,600 lbs 4808 kg |
| Ground clearance: | 20.3 inches 51 cm |
