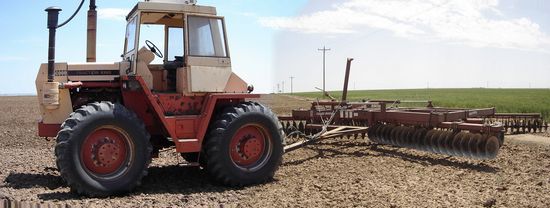

Case 1470 Traction King

Production: 1969 - 1972

Production
Manufacturer:	J.I. Case
Type:	Four-wheel Drive (4WD) tractor
Original price:	$19,000 (1972 )

J.I. Case 1470 Power
Drawbar (claimed):	126 hp 94.0 kW
PTO (claimed):	145 hp 108.1 kW
Drawbar (tested):	126.86 hp 94.6 kW
PTO (tested):	144.89 hp 108.0 kW

Mechanical
Chassis:	4x4 4WD
Steering:	four-wheel hydraulic power steering
Brakes:	hydraulic disc
Cab:	Open operator station. Cab optional.
Transmission:	8-speed

Hydraulics
Pump flow:	15.5 gpm 58.7 lpm

Tractor hitch
Rear Type:	III

Power Take-off (PTO)
Rear RPM:	1000
Engine RPM:	1000@2000

Engine Detail
J.I. Case
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	504 ci 8.3 L
Bore/Stroke:	4.625x5.00 inches 117 x 127 mm
Air cleaner:	dry
Compression:	16.5:1
Rated RPM:	2000
Starter volts:	24

Transmission
Gears:	8 forward and 4 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	102 inches 259 cm
Operating weight:	17,300 lbs 7847 kg
