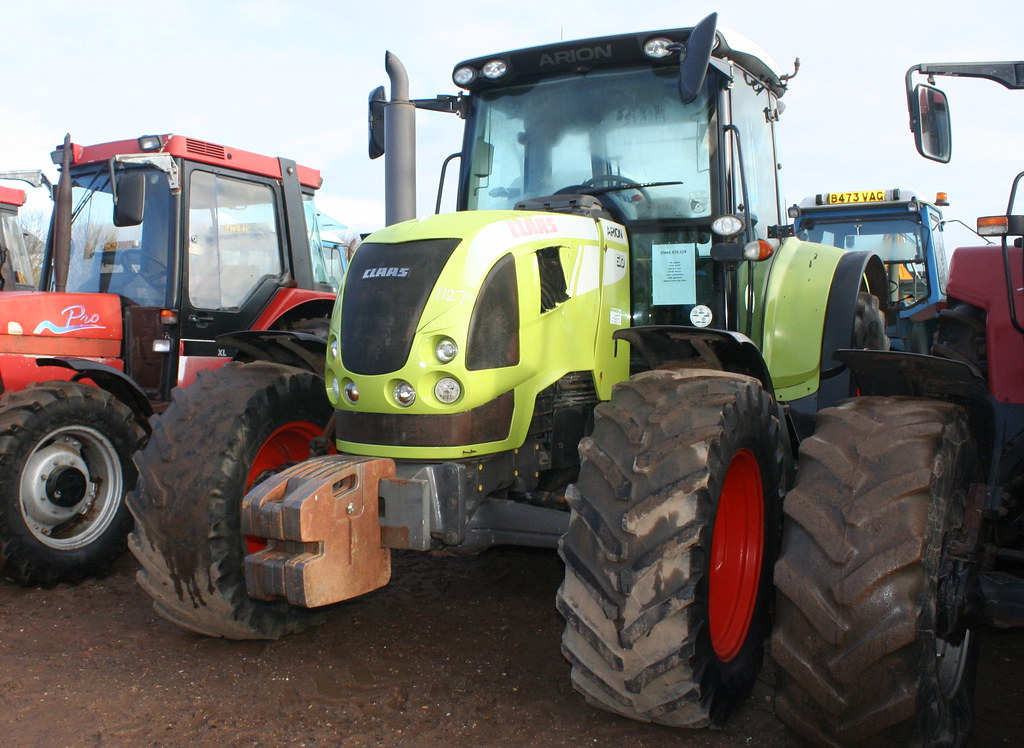

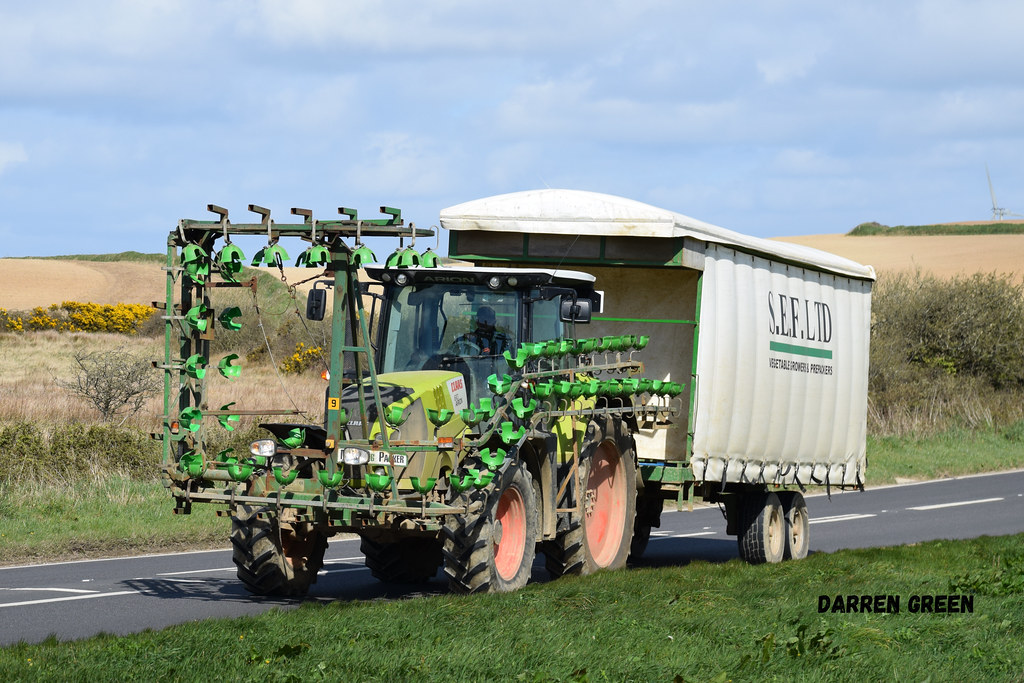

Claas Arion 610

Production: 2007 - 2011

Production
Manufacturer:	Claas
Type:	Row-Crop tractor

Variants
Arion 610:	deluxe model
Arion 610C:	economy model

Claas Arion 610 Power
Engine:	120 hp 89.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Trailer brakes:	pneumatic*Optional
Cab:	Cab standard with air-conditioning.
Transmission:	24-speed partial power shift with power shuttle

Hydraulics
Type:	load sensing
Pressure:	2901 psi 200.0 bar
Valves:	2 to 6
Total flow:	29.1 gpm 110.1 lpm

Power Take-off (PTO)
Rear RPM:	540/1000
540/540E/1000/1000E (optional)

Engine Detail
DPS
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	414.2 ci 6.8 L
Emissions:	Tier 3
Power:	120 hp 89.5 kW
Rated RPM:	2200
Torque:	388.7 lb-ft 527.1 Nm
Torque RPM:	1650
Starter type:	electric
Oil change:	500 h

Transmission
Transmission:	Hexashift
Type:	partial power shift with power shuttle
Gears:	24 forward and reverse

Dimensions
Wheelbase:	111 inches 281 cm
Length:	203 inches 515 cm
Height (cab):	117.5 inches 298 cm
Ground clearance:	19.2 inches 48 cm
