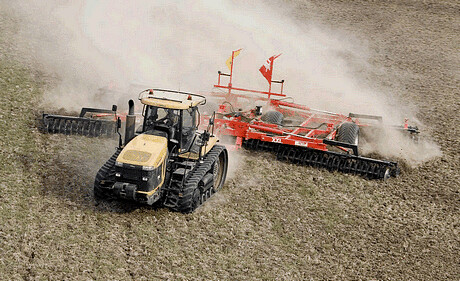

Challenger MT875B

Production: 2005 - 2008

Production
Manufacturer:	Challenger (a part of AGCO)
Type:	Agricultural Crawler tractor

Challenger MT875B Power
Engine:	570 hp 425.0 kW
Drawbar (tested):	431.02 hp 321.4 kW

Mechanical
Chassis:	crawler
Cab:	Cab standard.
Transmission:	16-speed

Hydraulics
Type:	closed center PFC
Pressure:	2900 psi 200.0 bar
Valves:	4
6 (optional)
Total flow:	43.5 gpm 164.6 lpm
59 gpm 223.3 lpm (optional)

Electrical
Ground:	negative
Charging amps:	185
Batteries:	4
Battery CCA:	1000
Battery volts:	12

Engine Detail
Caterpillar C18
turbo diesel
6-cylinder 24-valve
liquid-cooled vertical
Displacement:	1105 ci 18.1 L
Bore/Stroke:	5.709x7.205 inches 145 x 183 mm
Power:	570 hp 425.0 kW
Air cleaner:	dual paper elements
Compression:	16.5:1
Rated RPM:	2100
Starter volts:	12

Transmission
Transmission:	Cat Powershift
Gears:	16 forward and 4 reverse

Dimensions
Wheelbase:	118 inches 299 cm
Length:	265.9 inches 675 cm
Width:	140.9 inches 357 cm
Height:	138.1 inches 350 cm
Ground clearance:	14.4 inches 36 cm
