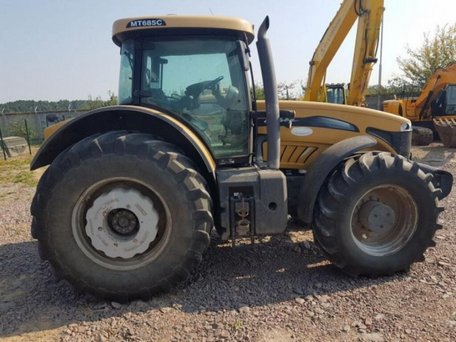

Challenger MT685C
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Challenger (a part of AGCO) |
| Type: | Row-Crop tractor |
| Factory: | Beauvais, France |
Challenger MT685C Power | |
| Engine: | 340 hp 253.5 kW |
| PTO (claimed): | 320 hp 238.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control. |
| Transmission: | continuously-variable transmission |
Hydraulics | |
| Type: | closed center load sensing |
| Pressure: | 2,901 psi 200.0 bar |
| Valves: | 4 to 6 |
| Pump flow: | 26.4 gpm 99.9 lpm |
| Total flow: | 46.2 gpm 174.9 lpm |
Tractor hitch | |
| Rear Type: | III, IV |
| Rear lift (at ends): | 26,460 lbs 12002 kg |
| Rear lift (at 24"/610mm): | 21,336 lbs 9678 kg |
| Front Hitch: | III |
| Front lift (at ends): | 11,020 lbs 4998 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 1000E/1000 (1.75) |
| 540E/1000 (1.375)*Optional | |
| Front PTO: | independent*Optional |
| Front RPM: | 1000 (1.375) |
MT685C Serial Numbers | |
| Location: | Serial number plate below the tractor cab door on the right side. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 240*Two 120A alternators. |
| Batteries: | 2 |
| Battery CCA: | 775 |
| Battery volts: | 12 |
Engine Detail | |
| AGCO SISU POWER 84CTA | |
| turbocharged intercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| The engine uses AGCO's e3 selective catalytic reduction (SCR) system to reduce nitrogen oxides (NOx). The system uses a diesel exhaust fluid that is injected into the exhaust gas. | |
| Displacement: | 512.6 ci 8.4 L |
| Bore/Stroke: | 4.37x5.71 inches 111 x 145 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Power: | 340 hp 253.5 kW |
| Maximum Power: | 370 hp 275.9 kW |
| Compression: | 16.7:1 |
| Rated RPM: | 2200 |
| Torque: | 1136 lb-ft 1540.4 Nm |
| Torque RPM: | 1500 |
| Starter type: | electric |
Transmission | |
| Transmission: | Dyna-VT |
| Type: | continuously-variable transmission |
| Gears: | infinite forward and reverse |
Dimensions | |
| Wheelbase: | 122.2 inches 310 cm |
| Length: | 223.2 inches 566 cm |
| Height (cab): | 133.1 inches 338 cm |
| Shiping weight: | 24,250 lbs 10999 kg |
| Max weight: | 38,890 lbs 17640 kg |
