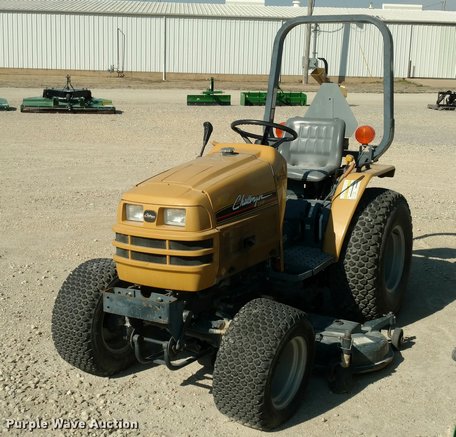

Challenger MT225

Production: 2003 - 2005

Production
Distributor:	Challenger (a part of AGCO)
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Matsuyama, Japan

Challenger MT225 Power
Engine (gross):	23.3 hp 17.4 kW
PTO (claimed):	19 hp 14.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	dry shoe
Cab:	Two-post fixed ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Pressure:	1930 psi 133.1 bar
Pump flow:	5.4 gpm 20.4 lpm
Total flow:	7.9 gpm 29.9 lpm
Steering flow:	2.5 gpm 9.5 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1,210 lbs 548 kg
Rear lift (at 24"/610mm):	694 lbs 314 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Iseki
diesel
3-cylinder
liquid-cooled
Displacement:	68.5 ci 1.1 L
Bore/Stroke:	3.08x3.07 inches 78 x 78 mm
Power (gross):	23.3 hp 17.4 kW
Rated RPM:	2800
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	59.5 inches 151 cm
Length:	105.4 inches 267 cm
Width:	41 inches 104 cm
Height:	75.2 inches 191 cm
Weight:	1,672 lbs 758 kg
Front tread:	36.5 inches 92 cm
Rear tread:	35 inches 88 cm
