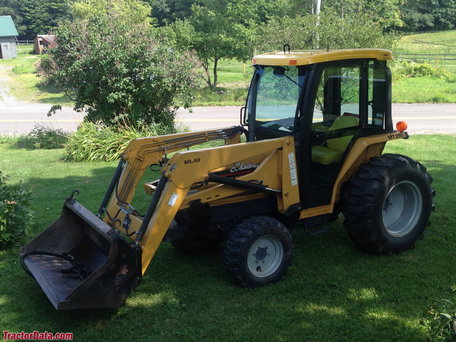

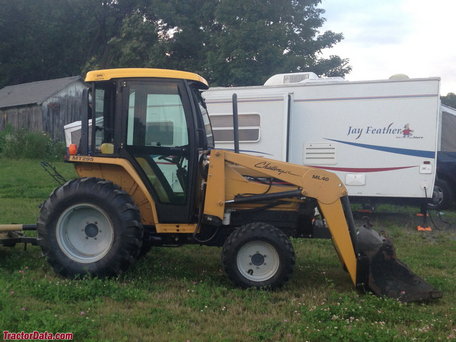

Challenger MT295
Type: Compact Utility Tractors
Contents:
Production | |
| Distributor: | Challenger (a part of AGCO) |
| Manufacturer: | Iseki |
| Type: | Compact Utility tractor |
| Factory: | Matsuyama, Japan |
Challenger MT295 Power | |
| Engine (gross): | 44.2 hp 33.0 kW |
| Gear PTO (claimed): | 37.0 hp 27.6 kW |
| Hydro PTO (claimed): | 36 hp 26.8 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. |
| Transmissions: | 16-speed power shuttle |
| hydrostatic | |
Hydraulics | |
| Type: | open center |
| Pressure: | 2275 psi 156.9 bar |
| Pump flow: | 7.4 gpm 28.0 lpm |
| Total flow: | 12.6 gpm 47.7 lpm |
| Steering flow: | 5.2 gpm 19.7 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | position and draft control |
| Rear lift (at ends): | 3086 lbs 1399 kg |
| Rear lift (at 24"/610mm): | 2600 lbs 1179 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | wet disc |
| Rear RPM: | 540 (1.375) |
| Mid PTO: | independent*Optional, available only with hydrostatic transmission. |
| Mid RPM: | 2000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| Iseki | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 134.1 ci 2.2 L |
| Bore/Stroke: | 3.43x3.64 inches 87 x 92 mm |
| Power (gross): | 44.2 hp 33.0 kW |
| Rated RPM: | 2500 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 76 inches 193 cm |
| Length: | 140.9 inches 357 cm |
| Width: | 71.5 inches 181 cm |
| Height (ROPS): | 95.9 inches 243 cm |
| 72.7 inches 184 cm *ROPS folded. | |
| Gear Weight: | 4277 lbs 1940 kg |
| Hydro Weight: | 4331 lbs 1964 kg |
| Front tread: | 52.5 inches 133 cm |
| Rear tread: | 52 to 60 inches 132 to 152 cm |
