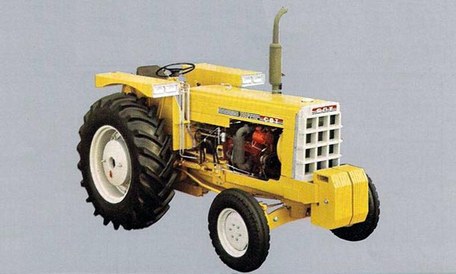

CBT 3000

Production
Manufacturer:	CBT
Factory:	Brazil

CBT 3000 Power
Engine:	1.6 hp 1.2 kW

Mechanical
Chassis:	4x2 2WD
Cab:	Open operator station
Transmissions:	6-speed
4-speed

Capacity
Fuel:	39.1 gal 148.0 L
Hydraulic system:	9.5 gal 36.0 L

Hydraulics
Capacity:	9.5 gal 36.0 L
Total flow:	4.2 gpm 15.9 lpm

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	4,409 lbs 1999 kg

Electrical
Charging system:	alternator
Charging amps:	35
Charging volts:	14
Batteries:	2
Battery volts:	6
Battery AH:	137

Engine Detail
Dodge 318-3E
ethanol
8-cylinder
liquid-cooled
Displacement:	318.1 ci 5.2 L
Bore/Stroke:	3.909x3.311 inches 99 x 84 mm
Power:	1.6 hp 1.2 kW
Compression:	10.5:1
Rated RPM:	2200
Starter volts:	12
Oil capacity:	6 qts 5.7 L
Coolant capacity:	26.4 qts 25.0 L

Dimensions
Wheelbase:	83.9 inches 213 cm
Length:	157.9 inches 401 cm
Width:	86.2 inches 218 cm
Height:	104.5 inches 265 cm
Operating weight:	8,631 lbs 3915 kg
Ballasted weight:	11,750 lbs 5329 kg
Clearance (drawbar):	18.5 inches 46 cm
Front tread:	63.4 inches 161 cm
Rear tread:	66.8 inches 169 cm
