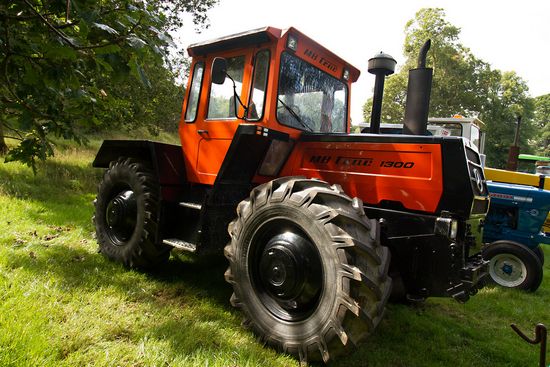

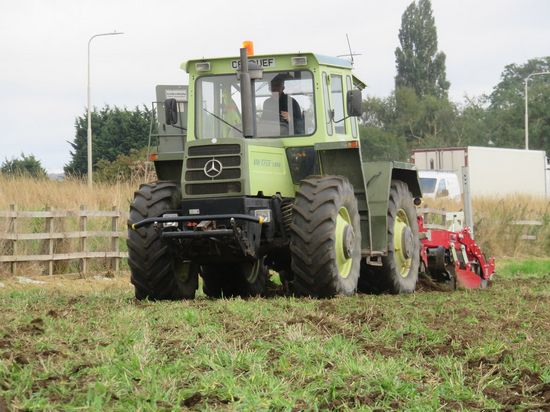

Mercedes-Benz Trac 1300

Production: 1976 - 1991

Production
Manufacturer:	Mercedes-Benz
Type:	Four-wheel Drive (4WD) tractor

Mercedes-Benz Trac 1300 Power
Engine:	125 hp 93.2 kW

Mechanical
Chassis:	4x4 4WD
Steering:	power
Brakes:	hydraulic drum
Cab:	Cab standard. Air-conditioning optional.
Transmissions:	14-speed synchronized
22-speed creeper

Hydraulics
Pump flow:	15.9 gpm 60.2 lpm

Tractor hitch
Rear Type:	II/III
Rear lift:	11023 lbs 5000 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000*Option between 1.375 and 1.75 inch PTO shafts.

Electrical
Charging system:	alternator
Charging amps:	35
Charging volts:	14
Battery volts:	12

Engine Detail
Mercedes OM 352A
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	346.3 ci 5.7 L
Bore/Stroke:	3.82x5.04 inches 97 x 128 mm
Power:	125 hp 93.2 kW
Rated RPM:	2600
Torque:	289.1 lb-ft 392.0 Nm
Torque RPM:	1600
Starter volts:	12

Dimensions
Wheelbase:	104.3 inches 264 cm
Length:	183.5 inches 466 cm
Height (cab):	114.2 inches 290 cm
Shiping weight:	12787 lbs 5800 kg
Max weight:	22046 lbs 10000 kg
Ground clearance:	19.7 inches 50 cm
Front tread:	70.9 to 78.7 inches 180 to 199 cm
Rear tread:	70.9 to 78.7 inches 180 to 199 cm
