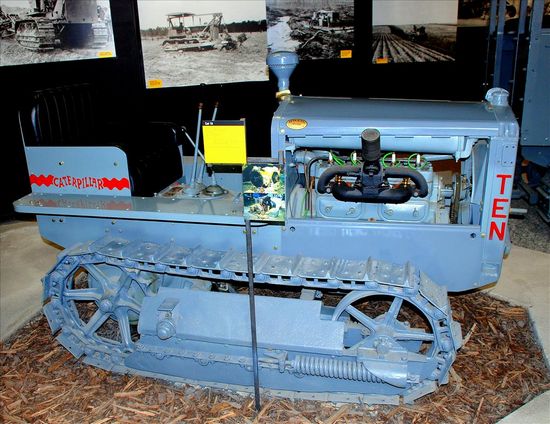

Caterpillar Ten

Production: 1928 - 1932
Type: Agricultural Crawler Tractors

Contents:

Production

Manufacturer:Caterpillar
Type:Agricultural Crawler tractor
Factory:Peoria, Illinois, USA
Total built:4,929

Caterpillar Ten Power

Drawbar (claimed):10 hp 7.5 kW
Belt (claimed):14 hp 10.4 kW
Drawbar (tested):14.9 hp 11.1 kW
Belt (tested):18.1 hp 13.5 kW

Mechanical

Chassis:crawler
Brakes:drum
Cab:Open operator station.
Transmission:3-speed gear

Ten Serial Numbers

1928:PT1
1929:PT8
1930:PT3174

Engine Detail

Caterpillar
gasoline
4-cylinder
liquid-cooled vertical L-head
Displacement:143.1 ci 2.3 L
Bore/Stroke:3.375x4.00 inches 86 x 102 mm
Rated RPM:1500
Coolant capacity:16 qts 15.1 L

Transmission

Type:gear
Gears:3 forward and 1 reverse
Clutch:266.7mm dry disc

Dimensions

Length:99.75 inches 253 cm
Width:52.75 inches 133 cm
Height:51.75 inches 131 cm
Weight:4420 lbs 2004 kg
Ground clearance:9.25 inches 23 cm
Gauge:37 inches 93 cm
