Case IH Steiger 600
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Fargo, North Dakota, USA |
| The Case IH Steiger 600 was awarded an ASABE AE50 award for innovation in 2012. | |
Variants | |
| wheeled tractor | |

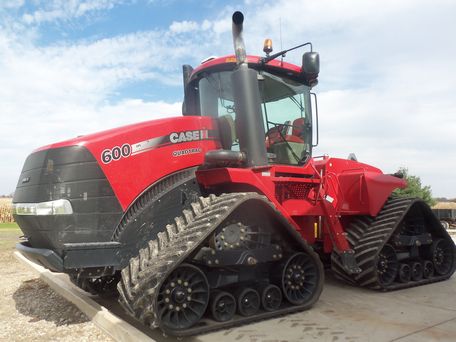

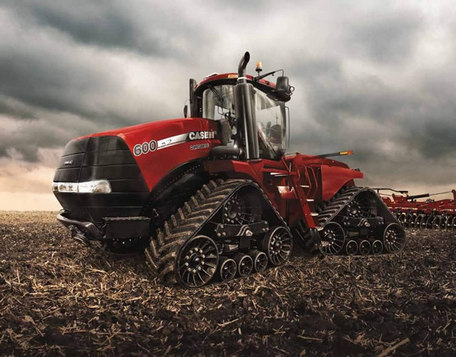

| crawler tractor |
Case IH Steiger 600 Power | |
| Engine: | 600 hp 447.4 kW |
| PTO (claimed): | 520 hp 387.8 kW |
| Drawbar (tested): | 490.42 hp 365.7 kW |
| PTO (tested): | 530.73 hp 395.8 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Cab: | Surveyor cab standard. |
| Transmission: | 16-speed full power shift |
Hydraulics | |
| Type: | pressure flow compensating (PFC) |
| Rear valves: | 4 to 8 |
| Pump flow: | 35 gpm 132.5 lpm |
| Total flow: | 42 gpm 159.0 lpm |
| 56 gpm 212.0 lpm (High Flow) | |
| 113 gpm 427.7 lpm (Twin Flow) | |
Tractor hitch | |
| Rear Type: | 4N |
| Rear lift: | 19,620 lbs 8899 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1-3/4) |
Steiger 600 Serial Numbers | |
| Location: | Serial number plate on the front left tractor fender, near the steps. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery CCA: | 1000 |
| Battery volts: | 12 |
Transmission | |
| Type: | full power shift |
| Gears: | 16 forward and 2 reverse |
| Clutch: | electro-hydraulic wet discs |
Dimensions | |
| Wheelbase: | 154 inches 391 cm |
| Weight: | 45,868 lbs 20805 kg (dual 710/70R42) |
| Ballasted weight: | 66,000 lbs 29937 kg |
| Rear axle: | 5.5 by 120 inches 139 by 3048 mm |
