Case IH Steiger 620
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Fargo, North Dakota, USA |
| Original price: | $468,459 (2015 ) |
Variants | |

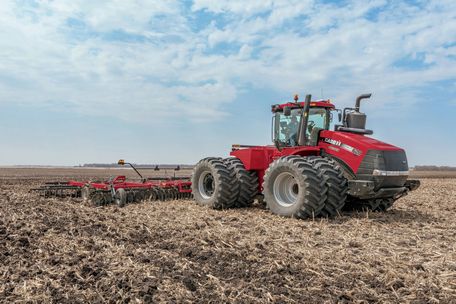

| wheeled tractor | |

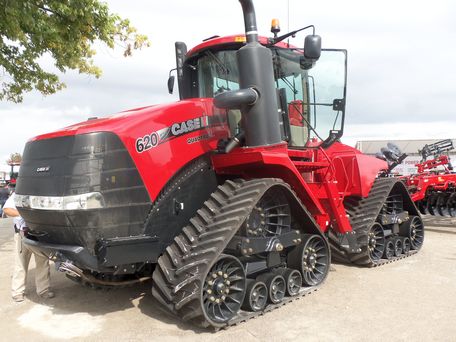

| crawler tractor |
Case IH Steiger 620 Power | |
| Engine: | 620 hp 462.3 kW |
| PTO (claimed): | 473 hp 352.7 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Final drives: | inboard planetary |
| Steering: | hydraulic articulated |
| Brakes: | hydraulic wet disc |
| engine brake*Optional. | |
| Trailer brakes: | hydraulic*Optional. |
| Cab: | Surveyor Cab standard with air-conditioning. |
| Transmission: | 16-speed full power shift |
Hydraulics | |
| Type: | pressure flow compensated |
| Valves: | 4 to 8 |
| Pump flow: | 42 gpm 159.0 lpm |
| 57 gpm 215.7 lpm *High Flow option | |
| 113 gpm 427.7 lpm *TwinFlow option | |
| SCV flow: | 35 gpm 132.5 lpm |
Tractor hitch | |
| Rear Type: | IVN |
| Rear lift (at 24"/610mm): | 19621 lbs 8900 kg |
| Rear Arms: | quick coupler |
| Drawbar: | Cat. 4 |
| Cat. 5*Optional | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000*1.75 inch shaft |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 240 |
| Batteries: | 2 |
| Battery CCA: | 1000 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| two-stage turbocharged air-to-water intercooled air-to-air aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 787 ci 12.9 L |
| Bore/Stroke: | 5.31x5.91 inches 135 x 150 mm |
| Emissions: | Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Power: | 620 hp 462.3 kW |
| Maximum Power: | 682 hp 508.6 kW |
| Fuel system: | electronic high pressure common rail |
| Cooling system: | hydraulically-driven fan |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 24 |
Transmission | |
| Type: | full power shift |
| Gears: | 16 forward and 2 reverse |
Dimensions | |
| Wheelbase: | 154 inches 391 cm |
| Length: | 300 inches 762 cm |
| Width: | 120 inches 304 cm *At axle ends. |
| Height (cab): | 156 inches 396 cm |
| Weight: | 48147 lbs 21839 kg |
| Max weight: | 66000 lbs 29937 kg |
| Front axle: | Bar: 5.5 by 120 inches 139 by 3048 mm |
| Rear axle: | Bar: 5.5 by 120 inches 139 by 3048 mm |
