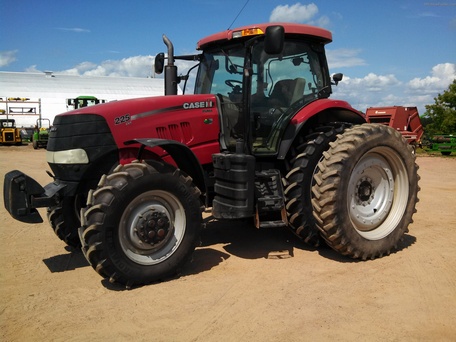

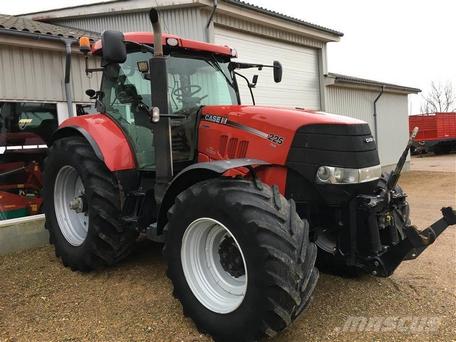

Case IH Puma 225
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Basildon, England |
| Original price: | $161,431 (2010 ) |
Case IH Puma 225 Power | |
| Engine: | 225 hp 167.8 kW |
| PTO (claimed): | 195 hp 145.4 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | differential hydraulic wet disc |
| Trailer brakes: | hydraulic optional |
| Cab: | Cab standard. |
| Transmission: | continuously variable transmission (CVT) |
Capacity | |
| Fuel: | 107 gal 405.0 L |
| Hydraulic system: | 26.5 gal 100.3 L |
Hydraulics | |
| Type: | pressure flow compensating (PFC) |
| Capacity: | 26.5 gal 100.3 L |
| Valves: | 3 to 5 |
| Pump flow: | 39.6 gpm 149.9 lpm |
| 45 gpm 170.3 lpm *Optional | |
| Total flow: | 56.6 gpm 214.2 lpm |
| 62 gpm 234.7 lpm *Optional | |
| Steering flow: | 17 gpm 64.3 lpm |
Tractor hitch | |
| Rear Type: | 2/3N |
| Rear lift (at ends): | 12,787 lbs 5800 kg |
| 15,873 lbs 7199 kg *Optional | |
| Rear lift (at 24"/610mm): | 10,900 lbs 4944 kg |
| 13,600 lbs 6168 kg *Optional | |
| Front Hitch: | optional |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000/1000E |
| Front PTO: | optional |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 150 |
| Battery CCA: | 1300 |
| Battery volts: | 12 |
Engine Detail | |
| CDC | |
| intercooled turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 411 ci 6.7 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Emissions: | Tier 3 |
| Power: | 225 hp 167.8 kW |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | continuously variable transmission (CVT) |
| Gears: | infinite forward and reverse |
Dimensions | |
| Wheelbase: | 113.6 inches 288 cm |
| Height (cab): | 119.7 inches 304 cm |
| Height (exhaust): | 122.6 inches 311 cm |
| Shiping weight: | 16,500 lbs 7484 kg |
| Rear axle: | 4.125 by 112 inches 104 by 2844 mm |
| Rear axle: | 4.125 by 98 inches 104 by 2489 mm |
| Rear axle: | 4.125 by 119 inches 104 by 3022 mm |
