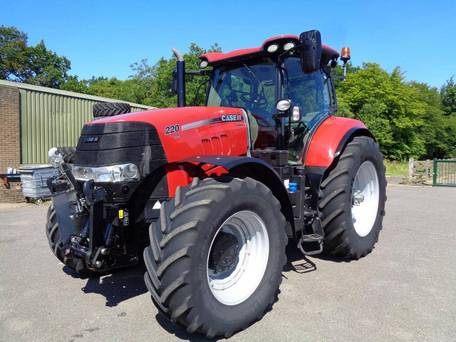

Case IH Puma 220

Production: 2014

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	Basildon, England
Original price:	$207,893 (2015 CVT )
Original price:	$195,731 (2015 power shift )

Case IH Puma 220 Power
Engine:	220 hp 164.1 kW
PTO (claimed):	190 hp 141.7 kW
Drawbar (tested):	156.5 hp 116.7 kW
PTO (tested):	209.6 hp 156.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Trailer brakes:	hydraulic*Optional
pneumatic*Optional
Cab:	Cab standard with air-conditioning.
Transmissions:	18-speed full power shift
continuously variable transmission (CVT)

Hydraulics
Type:	closed center pressure flow compensating
Valves:	3 to 5
Pump flow:	30 gpm 113.6 lpm
39.6 gpm 149.9 lpm *Optional
Total flow:	47 gpm 177.9 lpm
56.6 gpm 214.2 lpm *Optional
Steering flow:	17 gpm 64.3 lpm

Tractor hitch
Rear Type:	II/IIIN
Rear lift:	12787 lbs 5800 kg
15000 lbs 6804 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000 (1.375)
1000/1000E (1.75)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	150
Battery volts:	12

Engine Detail
FPT
turbocharged with air-to-air aftercooling diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:	410.6 ci 6.7 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Emissions:	Tier 4
Emission control:	selective catalytic reduction (SCR)
Power:	220 hp 164.1 kW
Maximum Power:	260 hp 193.9 kW
Fuel system:	electronic common rail
Cooling system:	viscous fan
reversible*Optional
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	113.6 inches 288 cm
