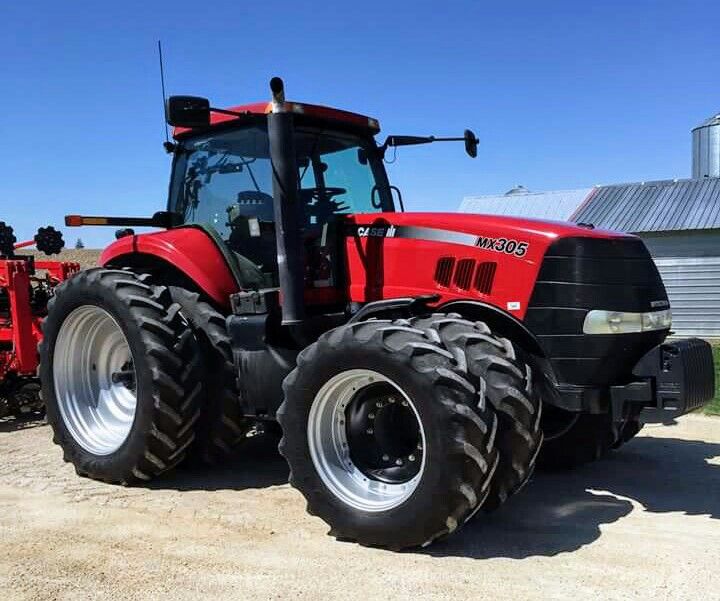

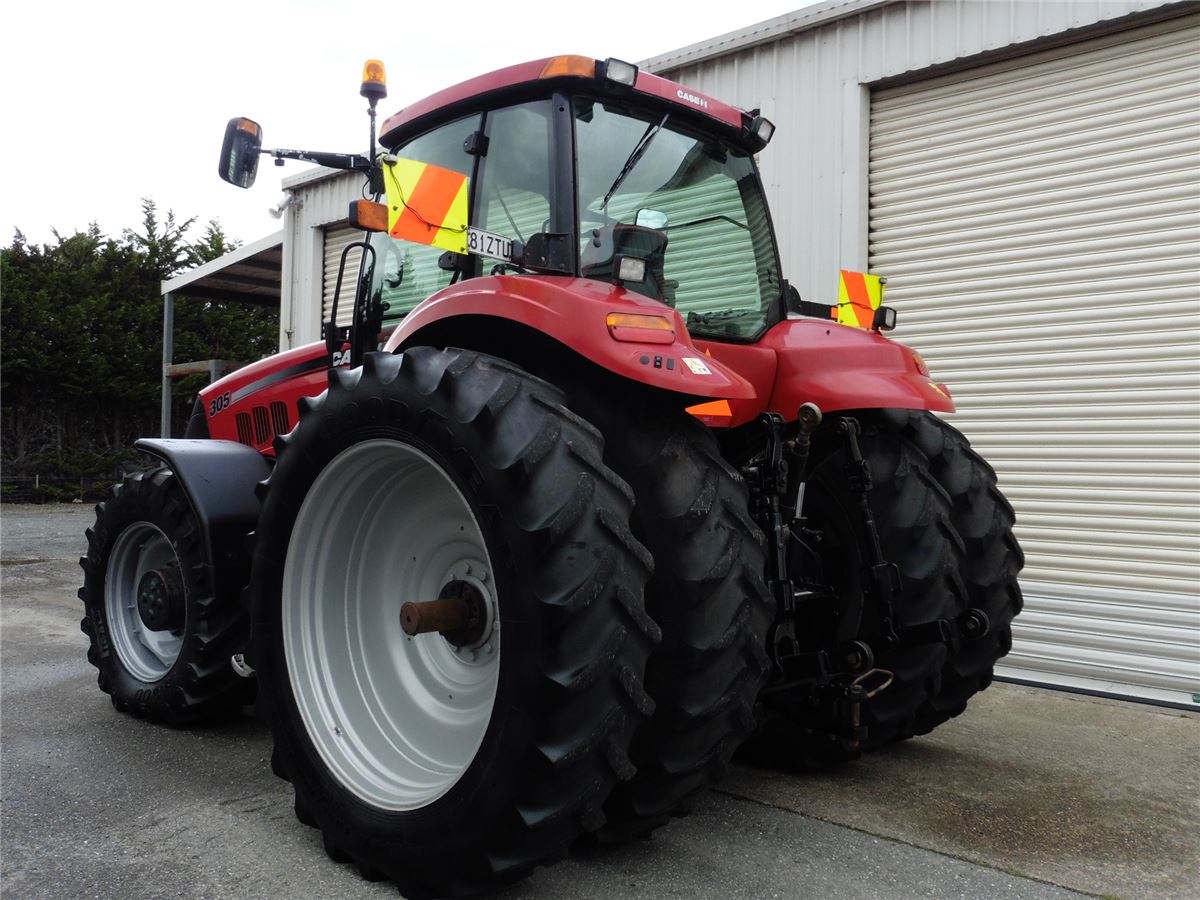

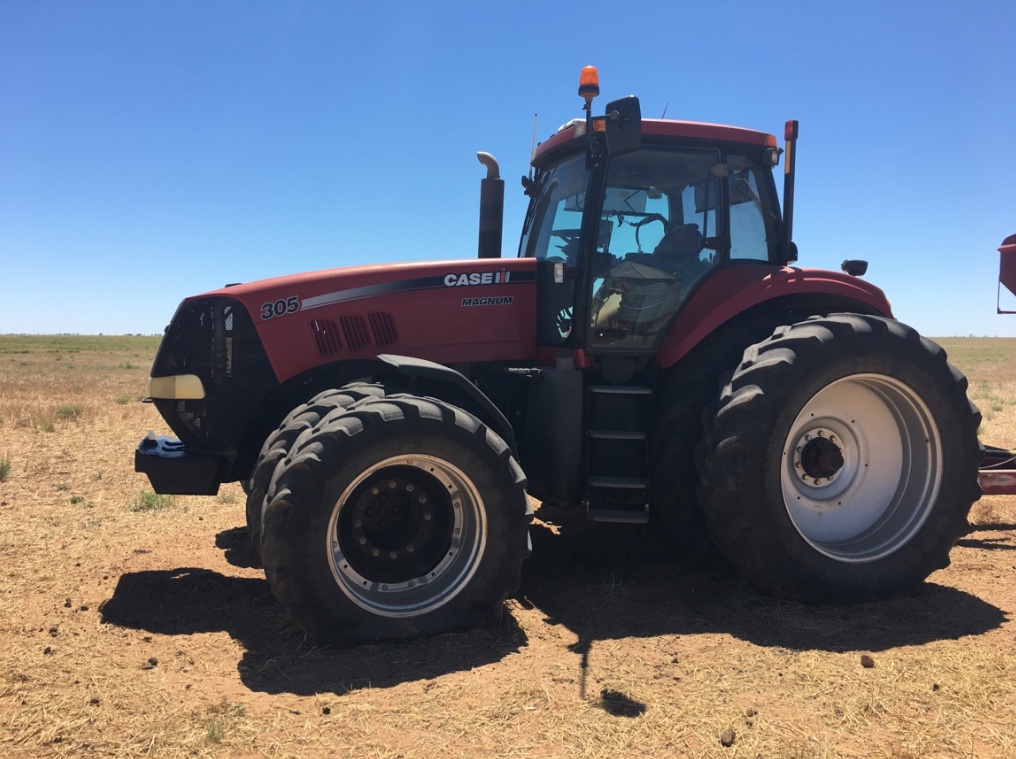

Case IH MX305 Magnum

Production: 2006 - 2007

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor

Case IH MX305 Power
Engine:	304 hp 226.7 kW
PTO (claimed):	255 hp 190.2 kW
Drawbar (tested):	220.34 hp 164.3 kW
PTO (tested):	299.70 hp 223.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard.
Transmissions:	18-speed
19-speed
23-speed

Capacity
Fuel:	180 gal 681.3 L
Hydraulic system:	45.5 gal 172.2 L

Hydraulics
Type:	PFC
Capacity:	45.5 gal 172.2 L
Valves:	3 to 5
Total flow:	38.6 gpm 146.1 lpm
58 gpm 219.5 lpm (optional)

Tractor hitch
Rear Type:	III
Rear lift:	15.970 lbs 7 kg
17,920 lbs 8128 kg (optional)

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging amps:	150
175 (optional)
Battery CCA:	2000
Battery volts:	12

Engine Detail
CNH
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	540 ci 8.9 L
Bore/Stroke:	4.488x5.689 inches 114 x 145 mm
Power:	304 hp 226.7 kW
Air cleaner:	dual paper elements
Compression:	17.6:1
Rated RPM:	2000
Torque:	1938 lb-ft 2627.9 Nm
Torque RPM:	1400
Starter volts:	12
Oil capacity:	22 qts 20.8 L
Coolant capacity:	24 qts 22.7 L

Dimensions
Wheelbase:	118.3 inches 300 cm
Height:	128.5 inches 326 cm
Operating weight:	21,585 lbs 9790 kg
Ballasted weight:	33,415 lbs 15157 kg
