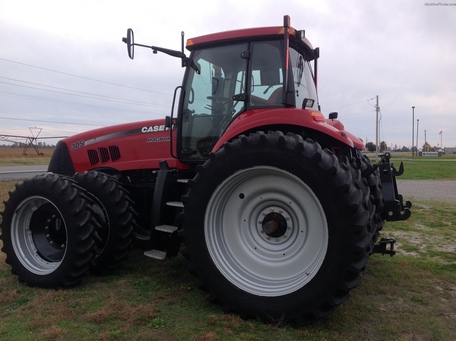

Case IH Magnum 305
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $221,592 (2010 ) |
Case IH Magnum 305 Power | |
| Engine: | 304 hp 226.7 kW |
| PTO (claimed): | 255 hp 190.2 kW |
| Drawbar (tested): | 220.34 hp 164.3 kW |
| PTO (tested): | 299.70 hp 223.5 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls. |
| Transmissions: | 18-speed full powershift |
| 19-speed full powershift | |
| 23-speed full powershift | |
Capacity | |
| Fuel: | 180 gal 681.3 L |
| Hydraulic system: | 45.5 gal 172.2 L |
Hydraulics | |
| Type: | PFC |
| Capacity: | 45.5 gal 172.2 L |
| Valves: | 3 to 5 |
| Total flow: | 44 gpm 166.5 lpm |
| 59 gpm 223.3 lpm (optional) | |
| 75 gpm 283.9 lpm (optional Twin-Flow) | |
Tractor hitch | |
| Rear Type: | III/IIIN |
| IVN/III optional | |
| Rear lift: | 14,070 lbs 6382 kg |
| 16,375 lbs 7427 kg (optional) | |
| 18,900 lbs 8573 kg (optional) | |
Power Take-off (PTO) | |
| Rear RPM: | 1000 |
| 540/1000 optional | |
Magnum 305 Serial Numbers | |
| Location: | Front-right tractor frame, above axle. |
Engine Detail | |
| CNH | |
| turbocharged intercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 540 ci 8.9 L |
| Bore/Stroke: | 4.488x5.689 inches 114 x 145 mm |
| Power: | 304 hp 226.7 kW |
| Air cleaner: | dual paper elements |
| Compression: | 17.5:1 |
| Rated RPM: | 2000 |
| Starter volts: | 12 |
| Oil capacity: | 22 qts 20.8 L |
| Coolant capacity: | 26 qts 24.6 L |
Dimensions | |
| Wheelbase: | 118.3 inches 300 cm |
| Height (cab): | 128.5 inches 326 cm |
| Rear axle: | 4 by 120 inches 101 by 3048 mm |
| Rear axle: | 4.5 by 120 inches 114 by 3048 mm |
