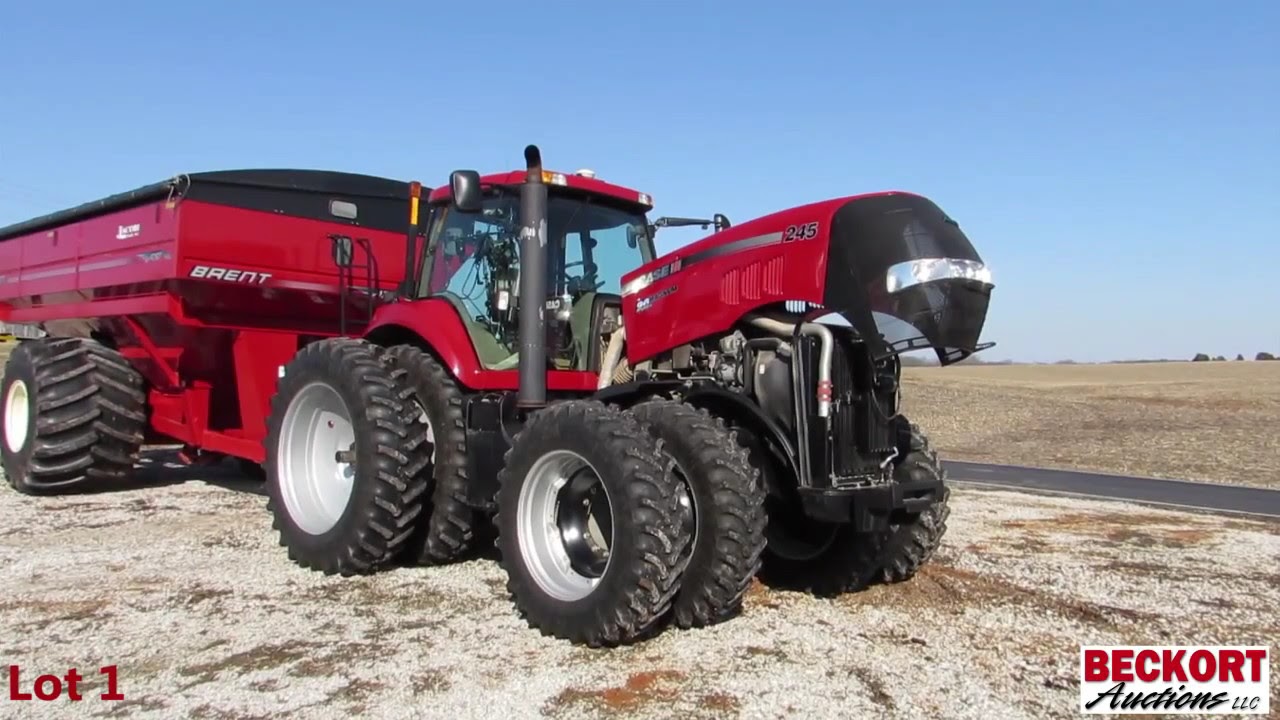

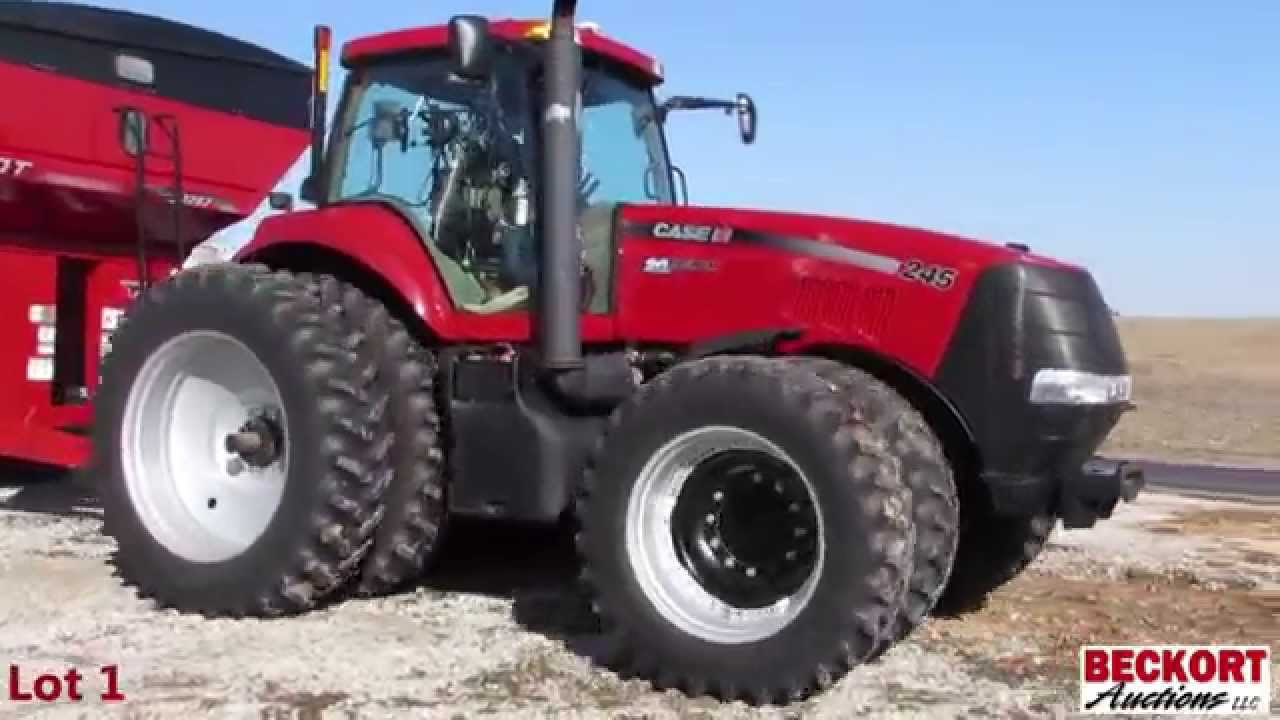

Case IH MX245 Magnum

Production: 2006 - 2007

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	Racine, Wisconsin, USA

Case IH MX245 Power
Engine:	248 hp 184.9 kW
PTO (claimed):	200 hp 149.1 kW
Drawbar (tested):	172.67 hp 128.8 kW
PTO (tested):	203.97 hp 152.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard.
Transmissions:	18-speed full power shift
19-speed full power shift - overdrive
23-speed Creeper

Capacity
Fuel:	180 gal 681.3 L
Hydraulic system:	45.5 gal 172.2 L

Hydraulics
Type:	pressure flow compensating
Capacity:	45.5 gal 172.2 L
Valves:	3 to 5
Total flow:	38.6 gpm 146.1 lpm
58 gpm 219.5 lpm *Optional

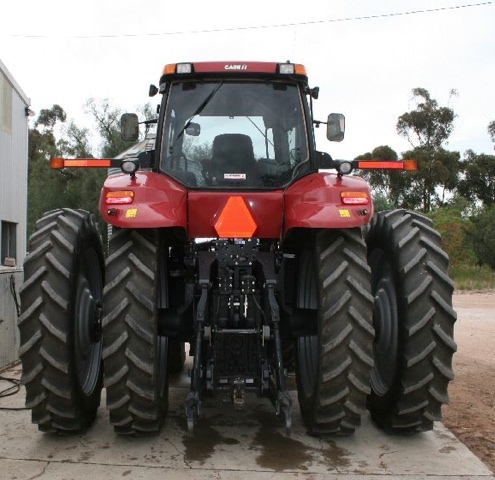

Tractor hitch
Rear Type:	III
Rear lift:	13960 lbs 6332 kg
15970 lbs 7243 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging amps:	150
175*Optional
Battery CCA:	2000
Battery volts:	12

Engine Detail
CNH
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	504.5 ci 8.3 L
Bore/Stroke:	4.488x5.315 inches 114 x 135 mm
Power:	248 hp 184.9 kW
Air cleaner:	dual paper elements
Compression:	17:1
Rated RPM:	2000
Torque:	1616 lb-ft 2191.3 Nm
Torque RPM:	1400
Starter volts:	12
Oil capacity:	22 qts 20.8 L
Coolant capacity:	24 qts 22.7 L

Dimensions
Wheelbase:	118.3 inches 300 cm
Height:	128.5 inches 326 cm
Operating weight:	21185 lbs 9609 kg
Ballasted weight:	27420 lbs 12437 kg
