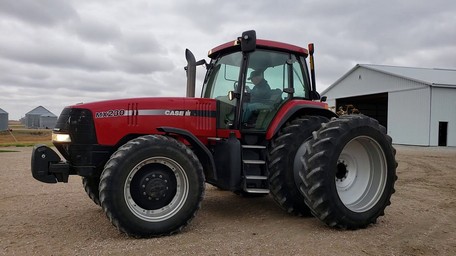

Case IH MX230 Magnum
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
Case IH MX230 Power | |
| Engine: | 234 hp 174.5 kW |
| PTO (claimed): | 190 hp 141.7 kW |
| Drawbar (tested): | 165.17 hp 123.2 kW |
| PTO (tested): | 216.55 hp 161.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Surveyor Cab standard with air-conditioning. Optional automatic climate control. |
| Transmission: | 18-speed full power shift |
Capacity | |
| Fuel: | 130 gal 492.1 L |
| 160 gal 605.6 L (optional) | |
| Hydraulic system: | 45.5 gal 172.2 L |
Hydraulics | |
| Type: | closed center pressure flow compensated (PFC) with parallel priority |
| Capacity: | 45.5 gal 172.2 L |
| Pressure: | 2950 psi 203.4 bar |
| Valves: | 3 to 5 |
| Total flow: | 38.6 gpm 146.1 lpm |
| 53.1 gpm 201.0 lpm (optional) | |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electronic draft control |
| Rear lift: | 13,960 lbs 6332 kg |
| 15,970 lbs 7243 kg (optional) | |
| Front Hitch: | optional |
| Front lift: | 7,170 lbs 3252 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
| 540/1000 (1.375 optional) | |
MX230 Serial Numbers | |
| 2003: | JAZ125000 |
| 2004: | JAZ129400 |
| 2005: | JAZ134001 |
| 2006: | JAZ138614 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 135 |
| Charging volts: | 12 |
| Batteries: | 2 |
| Battery CCA: | 1000 |
| Battery volts: | 12 |
Engine Detail | |
| CDC | |
| turbocharged intercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 504.5 ci 8.3 L |
| Bore/Stroke: | 4.488x5.315 inches 114 x 135 mm |
| Emissions: | Tier II |
| Power: | 234 hp 174.5 kW |
| Air cleaner: | dual paper elements |
| Compression: | 17.0:1 |
| Rated RPM: | 2000 |
| Torque: | 1445 lb-ft 1959.4 Nm |
| Torque RPM: | 1400 |
| Starter volts: | 12 |
| Oil capacity: | 22 qts 20.8 L |
| Coolant capacity: | 24 qts 22.7 L |
Transmission | |
| Type: | full power shift |
| Gears: | 18 forward and 4 reverse |
| Clutch: | electro-hydraulic wet discs |
Dimensions | |
| Wheelbase: | 120 inches 304 cm (2WD) |
| 118.3 inches 300 cm (4WD) | |
| Height (cab): | 124.6 inches 316 cm |
| Rear axle: | 4 by 114 inches 101 by 2895 mm |
| Rear axle: | 4 by 120 inches 101 by 3048 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
