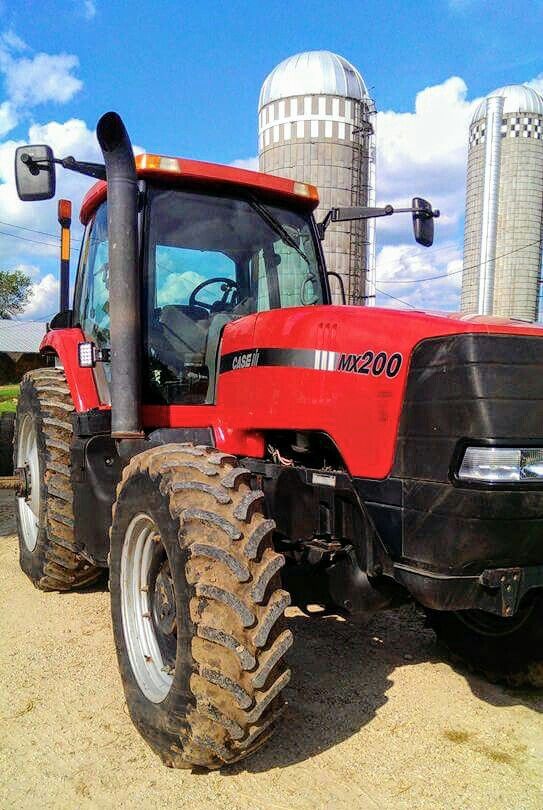

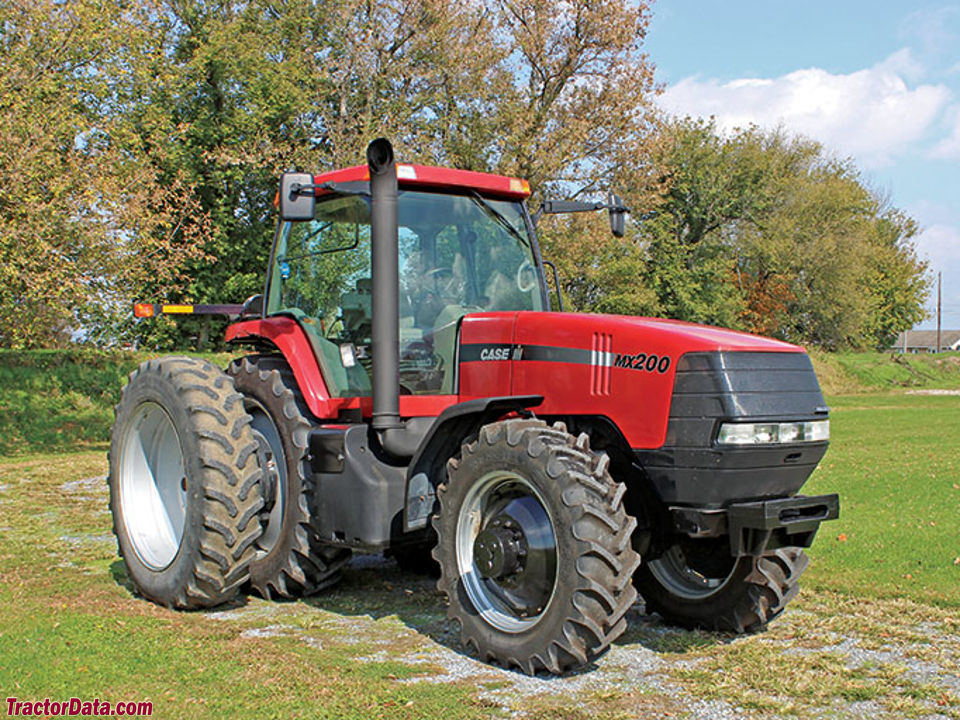

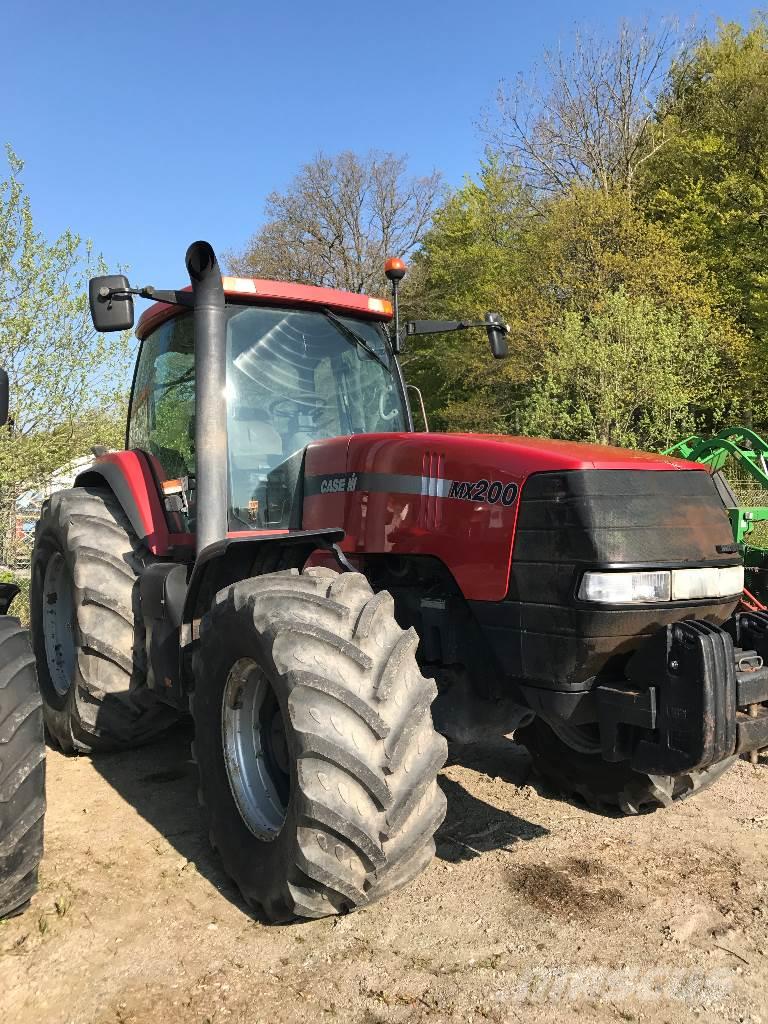

Case IH MX200 Magnum

Production: 1999 - 2002

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	Racine, Wisconsin, USA
Original price:	$93,000

Case IH MX200 Power
PTO (claimed):	165 hp 123.0 kW
Drawbar (tested):	142.33 hp 106.1 kW
PTO (tested):	193.16 hp 144.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard
Transmissions:	18-speed full power shift
24-speed

Capacity
Fuel:	130 gal 492.1 L
Hydraulic system:	45.5 gal 172.2 L

Hydraulics
Type:	PFC
Capacity:	45.5 gal 172.2 L
Valves:	3
Pump flow:	30 gpm 113.6 lpm

Tractor hitch
Rear Type:	III,IIIN

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
1000 (1.75)
Engine RPM:	540@1982 1000@1974

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
CDC
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	504.5 ci 8.3 L
Bore/Stroke:	4.488x5.315 inches 114 x 135 mm
Air cleaner:	dual paper elements
Compression:	16.5:1
Rated RPM:	2000
Starter volts:	12

Dimensions
4WD Wheelbase:	118.3 inches 300 cm
4WD Operating weight:	19660 lbs 8917 kg
Ballasted weight:	22,140 lbs 10042 kg
