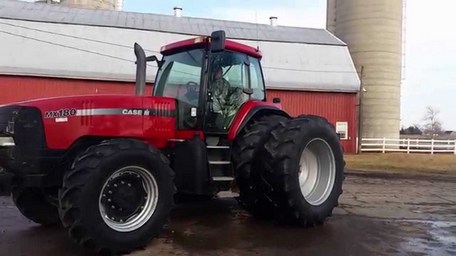

Case IH MX180 Magnum

Production: 1999 - 2002

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	Racine, Wisconsin, USA
Original price:	$87,000

Case IH MX180 Power
PTO (claimed):	145 hp 108.1 kW
Drawbar (tested):	124.86 hp 93.1 kW
PTO (tested):	175.68 hp 131.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard
Transmissions:	18-speed full powershift
24-speed

Capacity
Fuel:	130 gal 492.1 L
Hydraulic system:	45.5 gal 172.2 L

Hydraulics
Type:	PFC
Capacity:	45.5 gal 172.2 L
Valves:	2
Pump flow:	30 gpm 113.6 lpm

Tractor hitch
Rear Type:	III/IIIN

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@1982 1000@1974

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
CDC
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	504.5 ci 8.3 L
Bore/Stroke:	4.488x5.315 inches 114 x 135 mm
Air cleaner:	dual paper elements
Compression:	16.5:1
Rated RPM:	2000
Starter volts:	12

Dimensions
Wheelbase:	118.3 inches 300 cm (4WD)
Operating weight:	19,220 lbs 8718 kg (4WD)
Ballasted weight:	20,990 lbs 9521 kg
