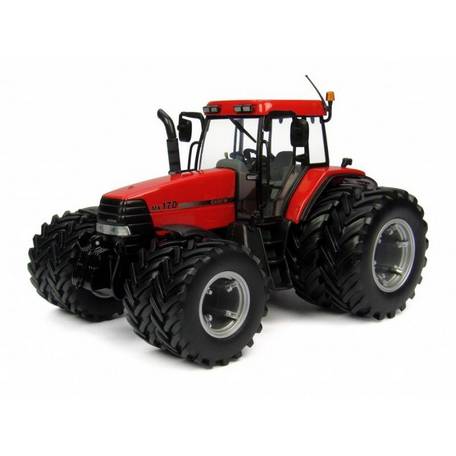

Case IH MX170 Maxxum
Contents:
Production | |
| Manufacturer: | Case IH |
| Original price: | $82,100 (1999) |
Case IH MX170 Power | |
| PTO (claimed): | 145 hp 108.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard. |
| Transmissions: | 16-speed partial power shift |
| 32-speed creeper | |
Capacity | |
| Fuel: | 92 gal 348.2 L |
| Hydraulic system: | 25.5 gal 96.5 L |
Hydraulics | |
| Type: | closed center pressure-flow compensated (PFC) |
| Capacity: | 25.5 gal 96.5 L |
| Pressure: | 2950 psi 203.4 bar |
| Valves: | 2 to 4 |
| Pump flow: | 28 gpm 106.0 lpm |
| Total flow: | 31.6 gpm 119.6 lpm |
Tractor hitch | |
| Rear Type: | II/III/IIIN |
| Control: | electronic lower link |
| Rear lift (at 24"/610mm): | 14,737 lbs 6684 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electrically-actuated wet disc |
| Rear RPM: | 540/1000 (1.375) |
MX170 Serial Numbers | |
| 1998: | JJA0083000 |
| 1999: | JJA0097438 |
| 2000: | JJA0103445 |
| 2001: | JJA0108300 |
| 2002: | JJA0115301 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 95 |
| Charging volts: | 12 |
| Batteries: | 2 |
| Battery CCA: | 950 |
| Battery volts: | 12 |
Engine Detail | |
| Cummins/CDC | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 359 ci 5.9 L |
| Bore/Stroke: | 4.016x4.724 inches 102 x 120 mm |
| Fuel system: | direct injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors |
| Air cleaner: | dual-element dry |
| Compression: | 17.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 15.8 qts 15.0 L |
| Coolant capacity: | 21 qts 19.9 L |
Dimensions | |
| Wheelbase: | 112.2 inches 284 cm (2WD) |
| 116.6 inches 296 cm (4WD) | |
| Length: | 206.4 inches 524 cm |
| Height (cab): | 114.7 inches 291 cm |
| Weight: | 14,100 lbs 6395 kg |
| Rear axle: | 4.0 by 113 inches 101 by 2870 mm |
| Rear axle: | 4.0 by 119 inches 101 by 3022 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
| Rear tread: | 60 to 88 inches 152 to 223 cm |
