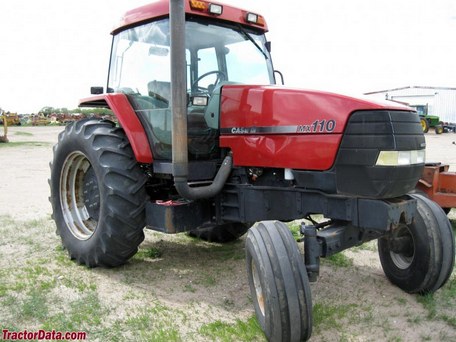

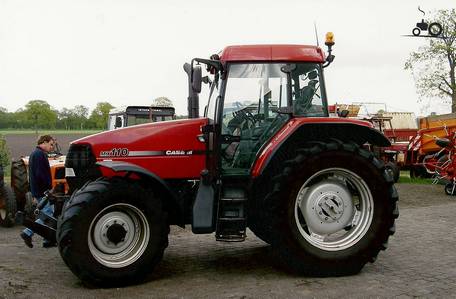

Case IH MX110 Maxxum
Contents:
Production | |
| Manufacturer: | Case IH |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $45,000 (1999) |
Case IH MX110 Power | |
| Engine: | 110 hp 82.0 kW |
| PTO (claimed): | 95 hp 70.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | electrically-actuated wet disc |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard. Two-post folding ROPS available. |
| Transmissions: | 16-speed synchromesh |
| 16-speed partial power shift | |
| 32-speed creeper | |
Capacity | |
| Fuel: | 72 gal 272.5 L |
| Hydraulic system: | 17.5 gal 66.2 L |
Hydraulics | |
| Type: | closed center pressure flow compensated (PFC) |
| Capacity: | 17.5 gal 66.2 L |
| Pressure: | 2950 psi 203.4 bar |
| Valves: | 2 to 4 |
| Pump flow: | 25 gpm 94.6 lpm |
| Total flow: | 28.9 gpm 109.4 lpm |
Tractor hitch | |
| Rear Type: | II/IIIN |
| Control: | electronic lower link |
| Rear lift (at 24"/610mm): | 8,393 lbs 3807 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 (1.375) |
MX110 Serial Numbers | |
| Location: | On inside of cab post near left door. |
| 1997: | JJA0075300 |
| 1998: | JJA0083000 |
| 1999: | JJA0097438 |
| 2000: | JJA0103445 |
| 2001: | JJA0108300 |
| 2002: | JJA0115301 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 65 (ROPS) |
| 95 (cab) | |
| Charging volts: | 12 |
| Batteries: | 2 |
| Battery CCA: | 900 |
| Battery volts: | 12 |
Engine Detail | |
| Cummins/CDC | |
| turbocharged diesel | |
| 6-cylinder 12-valve | |
| liquid-cooled inline | |
| Displacement: | 359 ci 5.9 L |
| Bore/Stroke: | 4.016x4.724 inches 102 x 120 mm |
| Power: | 110 hp 82.0 kW |
| Fuel system: | direct injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors |
| Air cleaner: | dual-element dry |
| Compression: | 17.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 15.8 qts 15.0 L |
| Coolant capacity: | 19.5 qts 18.5 L (ROPS) |
| 21 qts 19.9 L (cab) | |
Dimensions | |
| Wheelbase: | 110.7 inches 281 cm (2WD) |
| 106.3 inches 270 cm (4WD) | |
| Length: | 197.7 inches 502 cm |
| Height (cab): | 114.7 inches 291 cm |
| Shiping weight: | 11,300 lbs 5125 kg (2WD cab) |
| 12,460 lbs 5651 kg (4WD cab) | |
| Clearance (front axle): | 23.75 inches 60 cm (2WD) |
| 24.6 inches 62 cm (4WD) | |
| Rear axle: | 3.5 by 96 inches 88 by 2438 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
| Rear tread: | 60 to 88 inches 152 to 223 cm |
