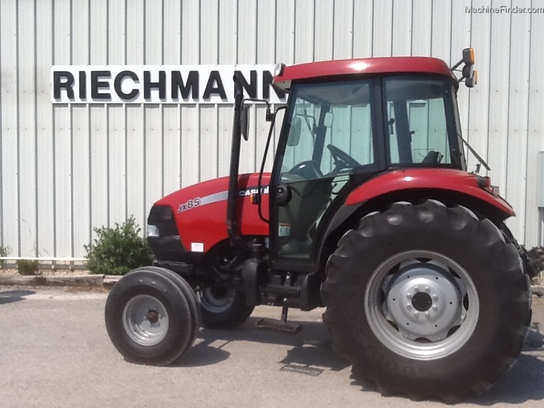

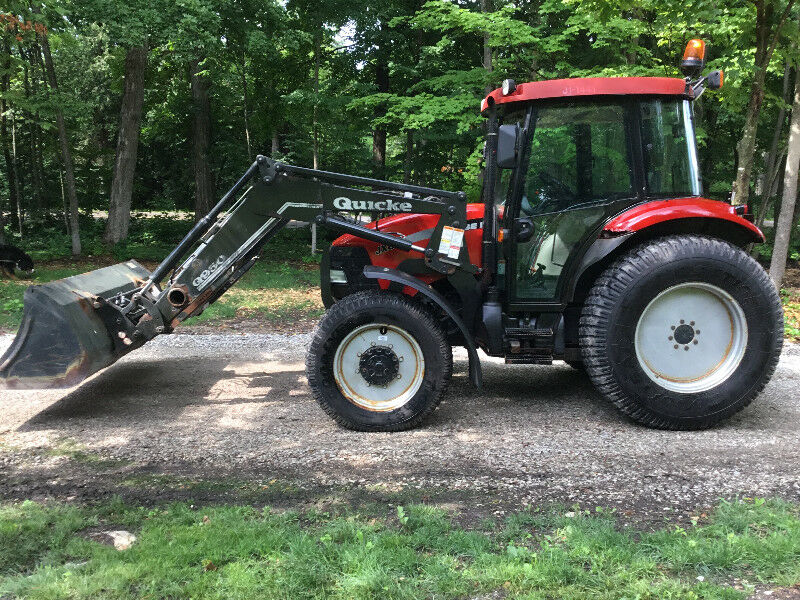

Case IH JX85 Maxxima

Production: 2002 - 2006

Production
Distributor:	Case IH
Manufacturer:	Turk Tractor
Type:	Utility tractor
Factory:	Turkey

Case IH JX85 Power
PTO (claimed):	70 hp 52.2 kW
Drawbar (tested):	58.4 hp 43.5 kW
PTO (tested):	71.1 hp 53.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydrostatic power
Brakes:	independent wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	12-speed mechanical shuttle
20-speed creeper

Hydraulics
Type:	open center
Valves:	3
Pump flow:	13.6 gpm 51.5 lpm

Tractor hitch
Rear Type:	II
Rear lift:	7718 lbs 3500 kg *Advertised. 3845 lbs actual lift during testing

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E
540/1000*Optional

JX85 Serial Numbers
2003:	HFJ000001

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iveco
diesel
4-cylinder
liquid-cooled
Displacement:	238.5 ci 3.9 L
Bore/Stroke:	4.094x4.528 inches 104 x 115 mm
Air cleaner:	paper element
Compression:	17.0:1
Rated RPM:	2500
Starter volts:	12

Dimensions
Wheelbase:	90.7 inches 230 cm (2WD)
88.5 inches 224 cm (4WD)
Length:	161.7 inches 410 cm
Height:	100.3 inches 254 cm
2WD Cab Operating weight:	6425 lbs 2914 kg
4WD Cab Operating weight:	6995 lbs 3172 kg
