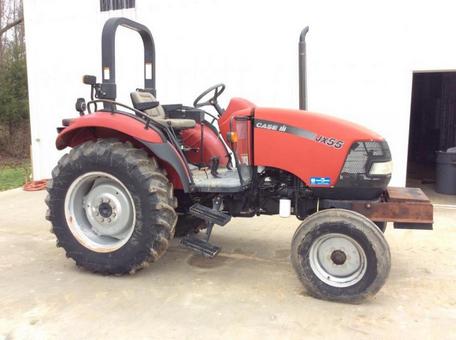

Case IH JX55 Maxxima

Production: 2002 - 2006

Production
Distributor:	Case IH
Manufacturer:	Turk Tractor
Type:	Utility tractor
Factory:	Turkey

Case IH JX55 Power
Engine (gross):	58 hp 43.3 kW
PTO (claimed):	42 hp 31.3 kW
Drawbar (tested):	37.8 hp 28.2 kW
PTO (tested):	45.1 hp 33.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydrostatic power
Brakes:	independent wet disc
Cab:	Two-post ROPS.
Transmissions:	12-speed mechanical shuttle
20-speed creeper

Hydraulics
Type:	open center
Valves:	3
Pump flow:	13.6 gpm 51.5 lpm

Tractor hitch
Rear Type:	II/I
Rear lift:	6615 lbs 3000 kg *Advertised. 3775 lbs actual lift during testing

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E
540/1000*Optional

JX55 Serial Numbers
2003:	HFJ000001

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iveco
diesel
3-cylinder
liquid-cooled
Displacement:	165.4 ci 2.7 L
Bore/Stroke:	3.937x4.528 inches 100 x 115 mm
Power (gross):	58 hp 43.3 kW
Air cleaner:	paper element
Compression:	17.0:1
Rated RPM:	2500
Starter volts:	12

Dimensions
Wheelbase:	83.4 inches 211 cm
Length:	154.9 inches 393 cm
Height:	100.3 inches 254 cm
2WD Operating weight:	5655 lbs 2565 kg
4WD Operating weight:	6705 lbs 3041 kg
