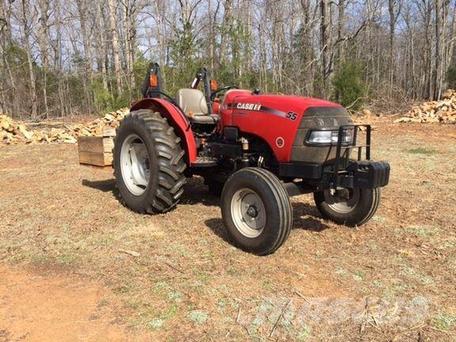

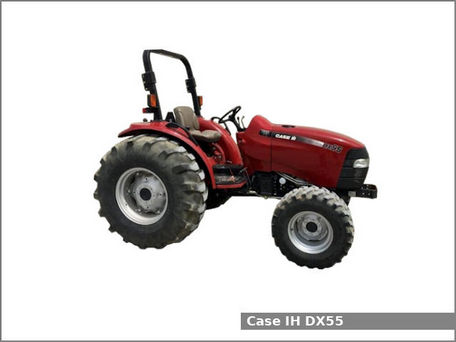

Case IH Farmall DX55

Production: 2004 - 2008

Production
Manufacturer:	Case IH
Type:	Compact Utility tractor

Case IH Farmall DX55 Power
Engine:	55 hp 41.0 kW
PTO (claimed):	47 hp 35.0 kW (synchro)
46 hp 34.3 kW (power shuttle)
PTO (tested):	48.01 hp 35.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Steering:	hydrostatic power
Brakes:	independent mechanical wet disc
Cab:	Two-post foldable ROPS.
Transmissions:	12-speed synchronized shuttle
12-speed power shuttle

Hydraulics
Total flow:	17.12 gpm 64.8 lpm

Tractor hitch
Rear Type:	I/II
Rear lift (at 24"/610mm):	3,465 lbs 1571 kg

Power Take-off (PTO)
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Shibaura
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	135.3 ci 2.2 L
Bore/Stroke:	3.307x3.937 inches 84 x 100 mm
Power:	55 hp 41.0 kW
Air cleaner:	dual paper elements
Compression:	22.4:1
Rated RPM:	2700
Starter volts:	12

Dimensions
Wheelbase:	74.8 inches 189 cm
Operating weight:	4,860 lbs 2204 kg
