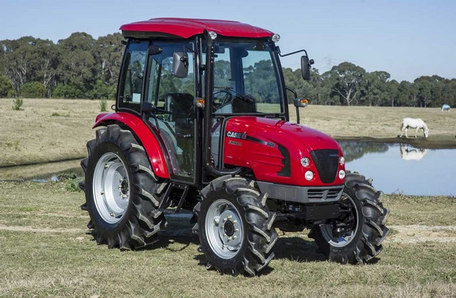

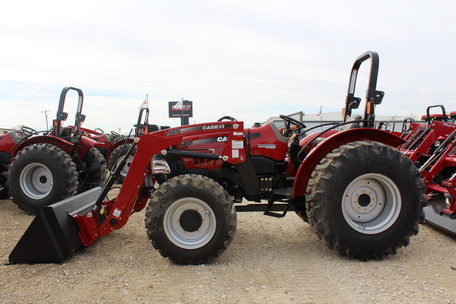

Case IH Farmall 60
Type: Agricultural Tractors
Contents:
Production | |
| Distributor: | Case IH |
| Manufacturer: | Shibaura |
| Type: | Farm/Agricultural tractor |
Case IH Farmall 60 Power | |
| Engine (gross): | 60 hp 44.7 kW |
| PTO (claimed): | 50 hp 37.3 kW (Power Shuttle) |
| 51 hp 38.0 kW (synchro) | |
| PTO (tested): | 51.57 hp 38.5 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | ROPS |
| Transmission: | 12-speed |
Hydraulics | |
| Type: | open center |
| Pressure: | 2489 psi 171.6 bar |
| Valves: | 0 to 3 |
| Pump flow: | 12 gpm 45.4 lpm |
| Total flow: | 17.53 gpm 66.4 lpm |
| Steering flow: | 5.5 gpm 20.8 lpm |
Tractor hitch | |
| Rear Type: | 1/2 |
| Rear lift (at 24"/610mm): | 3,465 lbs 1571 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 55 |
| Battery CCA: | 750 |
| Battery volts: | 12 |
Engine Detail | |
| Shibaura ISM-N844L-T | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 135.2 ci 2.2 L |
| Bore/Stroke: | 3.31x3.94 inches 84 x 100 mm |
| Power (gross): | 60 hp 44.7 kW |
| Rated RPM: | 2800 |
Transmission | |
| Transmission: | Synchro Shuttle |
| Gears: | 12 forward and reverse |
Dimensions | |
| Wheelbase: | 74.8 inches 189 cm |
| Length: | 137.3 inches 348 cm |
| Width: | 64.4 inches 163 cm (min) |
| Height: | 95 inches 241 cm (ROPS) |
| Weight: | 4,209 lbs 1909 kg (synchro) |
| 4,238 lbs 1922 kg (Power Shuttle) | |
| Ground clearance: | 12.9 inches 32 cm (front axle) |
