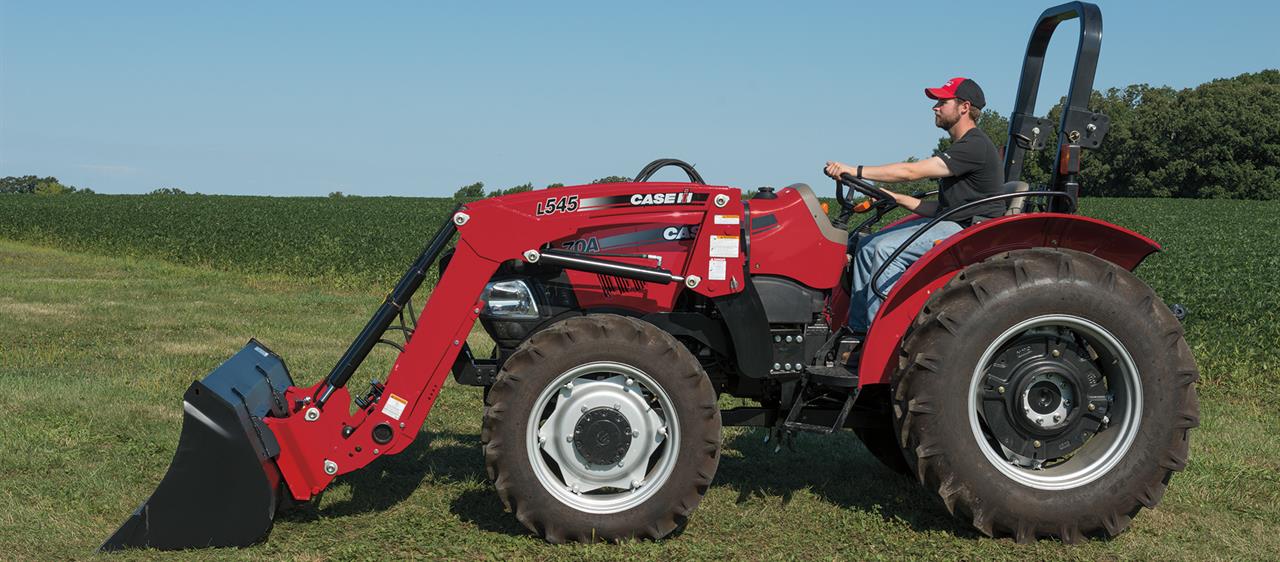

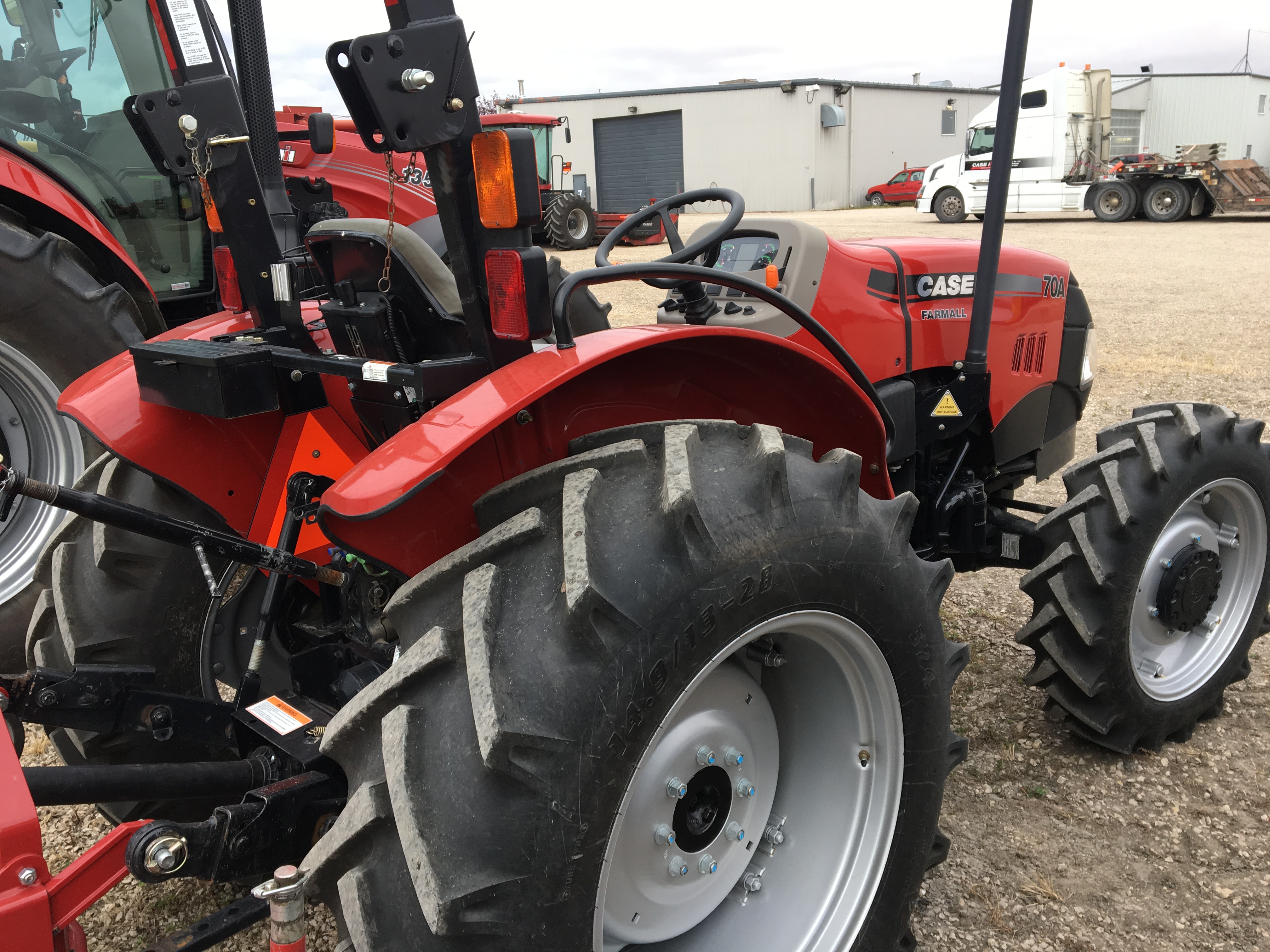

Case IH Farmall 70A
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
| Factory: | India |
Case IH Farmall 70A Power | |
| Engine (gross): | 70 hp 52.2 kW |
| PTO (claimed): | 62 hp 46.2 kW |
| PTO (tested): | 63.99 hp 47.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. |
| Transmission: | 8-speed mechanical shuttle |
Hydraulics | |
| Type: | open center |
| Rear valves: | 1 or 2 |
| Mid valves: | 0 or 2 |
| Pump flow: | 11.9 gpm 45.0 lpm |
| Steering flow: | 5.5 gpm 20.8 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 2701 lbs 1225 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@2575 540E@2016 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 75 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| turbocharged aftercooled diesel | |
| 3-cylinder 6-valve | |
| liquid-cooled | |
| Displacement: | 135.9 ci 2.2 L |
| Bore/Stroke: | 3.70x4.21 inches 94 x 107 mm |
| Emissions: | Tier IV |
| Power (gross): | 70 hp 52.2 kW |
| Fuel system: | electronic high-pressure common rail |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | mechanical shuttle |
| Gears: | 8 forward and reverse |
| Clutch: | 279mm mechanical cerametallic disc |
| Four gears in two ranges with shuttle. | |
Dimensions | |
| 2WD Wheelbase: | 96.4 inches 244 cm |
| 4WD Wheelbase: | 97.6 inches 247 cm |
| 2WD Length: | 129.5 inches 328 cm |
| 4WD Length: | 134 inches 340 cm |
| Width: | 67.5 inches 171 cm |
| 2WD Height: | 92.7 inches 235 cm |
| 4WD Height: | 97.4 inches 247 cm |
| 2WD Weight: | 4442 lbs 2014 kg |
| 4WD Weight: | 5060 lbs 2295 kg |
| Rear axle: | Flange: 53.9 inch length 1369 mm |
| 2WD Front tread: | 56 to 77.6 inches 142 to 197 cm |
| 4WD Front tread: | 61.3 to 69.2 inches 155 to 175 cm |
| Rear tread: | 52.6 to 68.4 inches 133 to 173 cm |
