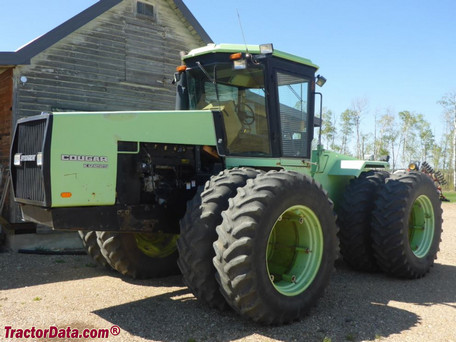

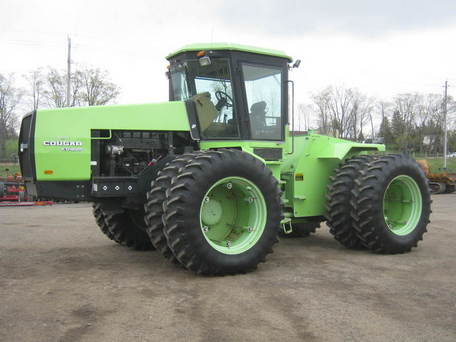

Steiger Cougar KR-1225

Production: 1985

Production
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA
Original price:	$80,000 (1985)

Variants

Caterpillar 225 HP

Cummin 225 HP

Caterpillar 280 HP

Cummins 280 HP

Steiger Cougar KR-1225 Power
Engine:	225 hp 167.8 kW
PTO (claimed):	190 hp 141.7 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	articulated power
Brakes:	hydraulic disc
Cab:	Cab standard
Transmission:	20-speed two-speed power shift

Hydraulics
Type:	closed-center load sensing
Valves:	3
Pump flow:	30 gpm 113.6 lpm

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000
Engine RPM:	1000@2100

Electrical
Charging system:	alternator

Engine Detail
Cummins LT-10-A
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	611 ci 10.0 L
Bore/Stroke:	4.92x5.34 inches 125 x 136 mm
Power:	225 hp 167.8 kW
Rated RPM:	2100
Starter type:	electric

Transmission
Type:	two-speed power shift
Gears:	20 forward and 4 reverse
Five gears (1-5) in two ranges (low/high) with a two-speed power shift.

Dimensions
Weight:	24,800 lbs 11249 kg
Front axle:	Flange
Front axle:	Bar
Rear axle:	Flange
Rear axle:	Bar
