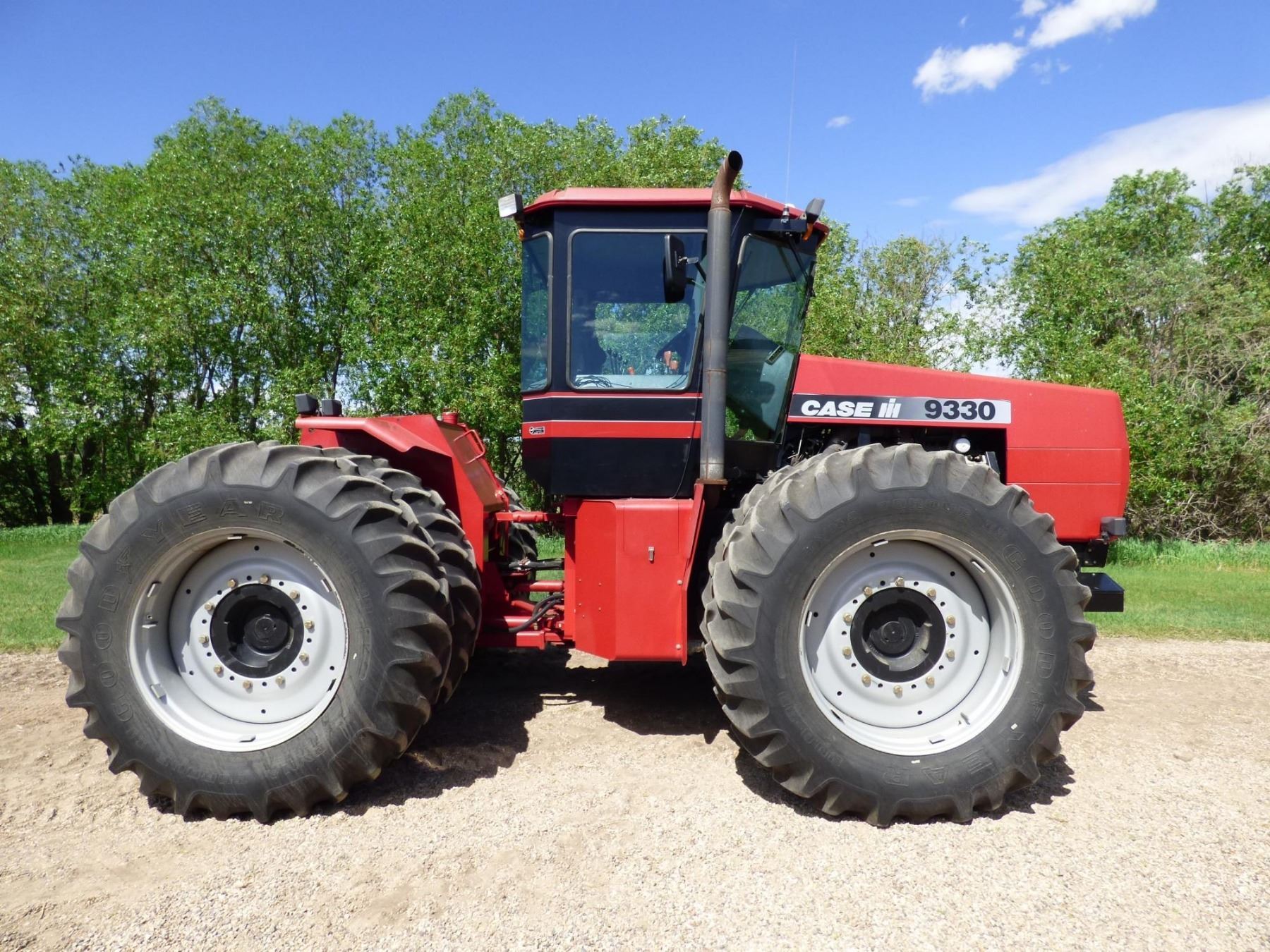

Case IH 9330
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Fargo, North Dakota, USA |
| Original price: | $107,000 (1999 ) |
Case IH 9330 Power | |
| Engine (gross): | 240 hp 179.0 kW |
| PTO (claimed): | 207 hp 154.4 kW |
| Drawbar (tested): | 185.88 hp 138.6 kW |
| PTO (tested): | 229.96 hp 171.5 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | articulated power |
| Brakes: | hydraulic disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 12-speed full powershift |
Hydraulics | |
| Type: | closed center |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 4 |
| Pump flow: | 28 gpm 106.0 lpm |
Tractor hitch | |
| Rear Type: | III |
| Rear lift (at 24"/610mm): | 12750 lbs 5783 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 125 |
| Batteries: | 2 |
| Battery CCA: | 625 |
| Battery volts: | 12 |
Engine Detail | |
| CDC 6TA | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 504.5 ci 8.3 L |
| Bore/Stroke: | 4.49x5.31 inches 114 x 135 mm |
| Power (gross): | 240 hp 179.0 kW |
| Air cleaner: | dual paper elements |
| Compression: | 16.5:1 |
| Rated RPM: | 2200 |
| Idle RPM: | 850-2310 |
| Starter volts: | 12 |
| Oil capacity: | 22.2 qts 21.0 L |
| Oil change: | 250 h |
| Coolant capacity: | 29.5 qts 27.9 L |
Transmission | |
| Type: | full powershift |
| Gears: | 12 forward and 3 reverse |
| Clutch: | hydraulic wet disc |
Dimensions | |
| Wheelbase: | 120 inches 304 cm (row-crop) |
| 120.4 inches 305 cm (fixed) | |
| Length: | 242 inches 614 cm |
| Width: | 88.9 inches 225 cm *Width at fenders. |
| Height (exhaust): | 130.4 inches 331 cm |
| Clearance (front axle): | 32.4 inches 82 cm |
| Clearance (drawbar): | 19 inches 48 cm |
| Front axle: | Bar: 4 by 119.5 inches 101 by 3035 mm |
| Rear axle: | Bar: 4 by 119.5 inches 101 by 3035 mm |
