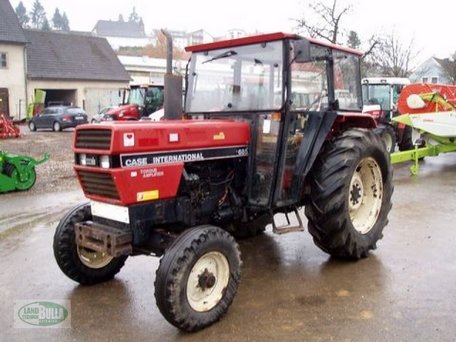

Case IH 685

Production: 1985 - 1990

Production
Manufacturer:	Case IH
Type:	Utility tractor
Factory:	Doncaster, England
Original price:	$22,300 (1990 )

Variants

utility

orchard

Case IH 685 Power
Engine:	73 hp 54.4 kW
Drawbar (claimed):	54 hp 40.3 kW
PTO (claimed):	61 hp 45.5 kW
Drawbar (tested):	52.90 hp 39.4 kW
PTO (tested):	61.02 hp 45.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	differential hydraulic wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	8-speed gear
16-speed two-speed powershift

Capacity
Fuel:	20 gal 75.7 L
Hydraulic system:	9 gal 34.1 L

Hydraulics
Type:	open center
Capacity:	9 gal 34.1 L
Pressure:	2500 psi 172.4 bar
Valves:	1 or 2
Pump flow:	15.8 gpm 59.8 lpm
18.6 gpm 70.4 lpm *Optional

Tractor hitch
Rear Type:	II/I
Rear lift (at 24"/610mm):	3260 lbs 1478 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

685 Serial Numbers
Location:	Serial number plate on the tractors front-right axle support
1985:	15000
1986:	18000
1987:	19558
1988:	23107
1989:	26391
1990:	29371

Electrical
Charging system:	alternator
Charging amps:	45

Engine Detail
Case
diesel
4-cylinder
liquid-cooled
Displacement:	238.8 ci 3.9 L
Bore/Stroke:	3.875x5.06 inches 98 x 129 mm
Power:	73 hp 54.4 kW
Air cleaner:	dual paper elements
Compression:	16:1
Rated RPM:	2400
Starter volts:	12

Dimensions
Wheelbase:	84.5 inches 214 cm
Length:	141.6 inches 359 cm
2WD Height:	93.5 inches 237 cm
4WD Height:	96.5 inches 245 cm
