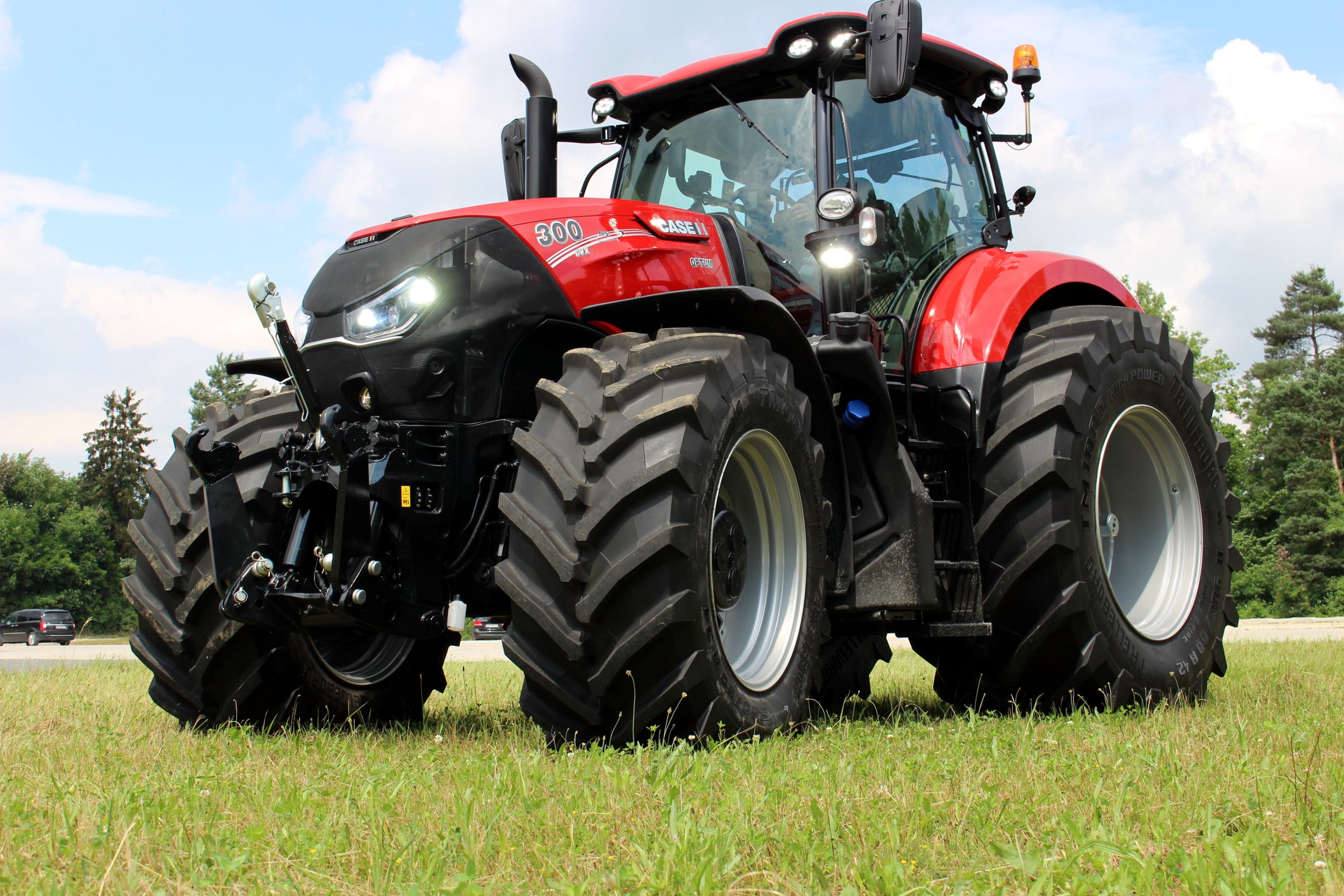

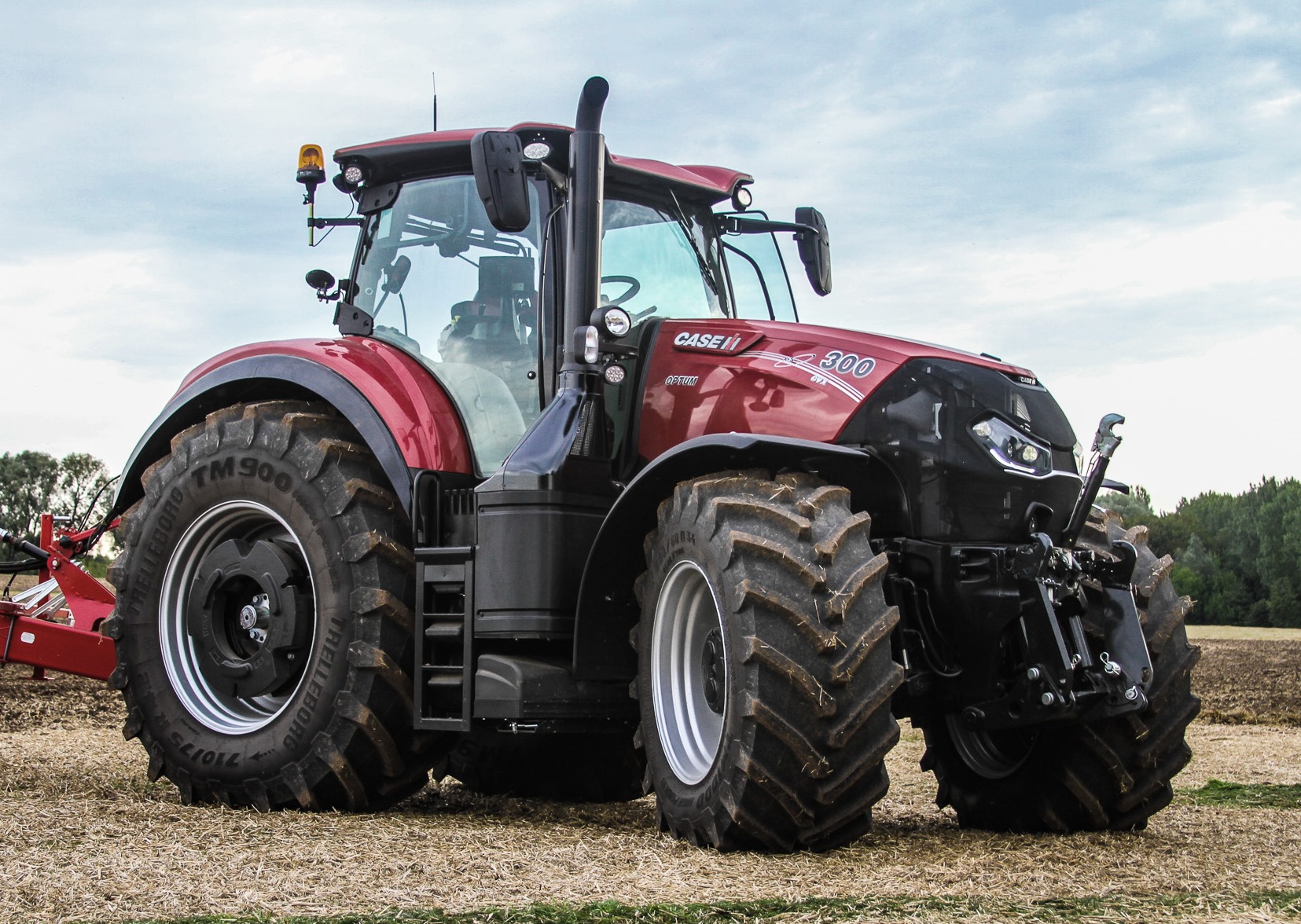

Case IH Optum 300
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | St. Valentin, Austria |
| Original price: | $283,215 (2016 ) |
Case IH Optum 300 Power | |
| Engine (gross): | 300 hp 223.7 kW |
| Engine (max): | 313 hp 233.4 kW |
| PTO (claimed): | 270 hp 201.3 kW |
| Drawbar (tested): | 226.5 hp 168.9 kW |
| PTO (tested): | 290.7 hp 216.8 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Steering: | power |
| Brakes: | wet disc |
| Trailer brakes: | hydraulic |
| Cab: | SurroundVision cab standard with air-conditioning. AccuGuide |
| Transmission: | continuously variable transmission (CVT) |
Hydraulics | |
| Type: | closed center pressure flow compensating (PFC) |
| Rear valves: | 4 or 5 |
| Mid valves: | 1 or 3 |
| Pump flow: | 43.6 gpm 165.0 lpm |
| 58 gpm 219.5 lpm *Optional | |
| SCV flow: | 37 gpm 140.0 lpm |
Tractor hitch | |
| Rear Type: | III |
| IVN*Optional | |
| Control: | electronic draft control |
| Rear lift (at 24"/610mm): | 19180 lbs 8700 kg |
| Rear Arms: | telescopic link ends |
| Front lift: | 9700 lbs 4399 kg |
| Drawbar: | Cat. 3 |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/540E/1000/1000E (1.375) |
| 1000/1000E (1.75)*Optional | |
| Front PTO: | independent*Optional |
| Front RPM: | 1000/1000E (1.375) |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 150 |
| 200*Optional | |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| electronic variable geometry turbocharged with air-to-air aftercooling diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 410.6 ci 6.7 L |
| Bore/Stroke: | 4.095x5.197 inches 104 x 132 mm |
| Emissions: | Tier IV |
| Emission control: | selective catalytic reduction (SCR) |
| Rated Power (ECE R120): | 300 hp 223.7 kW |
| Maximum Power (ECE R120): | 313 hp 233.4 kW |
| Fuel system: | electronic high pressure common rail direct injection |
| Cooling system: | viscous fan |
| reversible pitch*Optional | |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | continuously variable transmission (CVT) |
| Gears: | infinite (4 range) forward and infinite (2 range) reverse |
Dimensions | |
| Wheelbase: | 117.3 inches 297 cm |
| Length: | 208.2 inches 528 cm |
| Width: | 119 inches 302 cm |
| Height (cab): | 132.5 inches 336 cm |
| Weight: | 23149 lbs 10500 kg |
| Max weight: | 35274 lbs 16000 kg |
| Rear axle: | Flange |
| Rear axle: | Bar: 4.125 by 98 inches 104 by 2489 mm |
| Rear axle: | Bar: 4.125 by 112 inches 104 by 2844 mm |
| Rear axle: | Bar: 4.125 by 119 inches 104 by 3022 mm |
