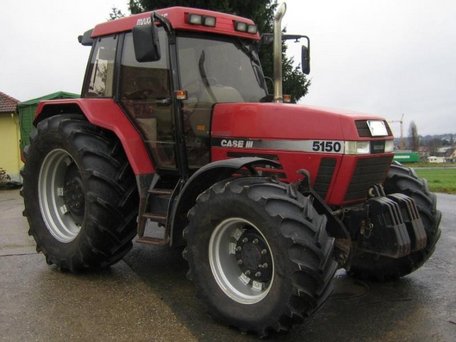

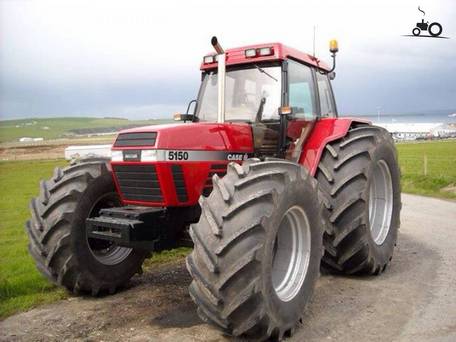

Case IH 5150 Maxxum

Production: 1992 - 1997

Production
Manufacturer:	Case IH
Factory:	Neuss, Germany

Case IH 5150 Power
Engine:	132 hp 98.4 kW
PTO (claimed):	112 hp 83.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	planetary
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	16-speed four-speed power shift
24-speed creeper

Capacity
Fuel:	44.9 gal 169.9 L
Hydraulic system:	20.1 gal 76.1 L

Hydraulics
Capacity:	20.1 gal 76.1 L
Pressure:	2756 psi 190.0 bar
Pump flow:	20.7 gpm 78.3 lpm

Tractor hitch
Rear Type:	II
Front Hitch:	II*Optional

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic wet disc
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@1880 1000@2200

Electrical
Charging system:	alternator
Charging amps:	65
Battery volts:	12
Battery AH:	105

Engine Detail
CDC 6T-590
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	359 ci 5.9 L
Bore/Stroke:	4.02x4.72 inches 102 x 120 mm
Power:	132 hp 98.4 kW
Fuel system:	direct injection
Compression:	17.5:1
Rated RPM:	2200
Idle RPM:	700-2400
Torque:	379.8 lb-ft 515.0 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12
Oil capacity:	15.85 qts 15.0 L
Coolant capacity:	22 qts 20.8 L

Dimensions
Wheelbase:	101.8 inches 258 cm
Length:	175.3 inches 445 cm
Width:	86.8 inches 220 cm
Height (cab):	107.6 inches 273 cm
Shiping weight:	12346 lbs 5600 kg
Ground clearance:	18.3 inches 46 cm
