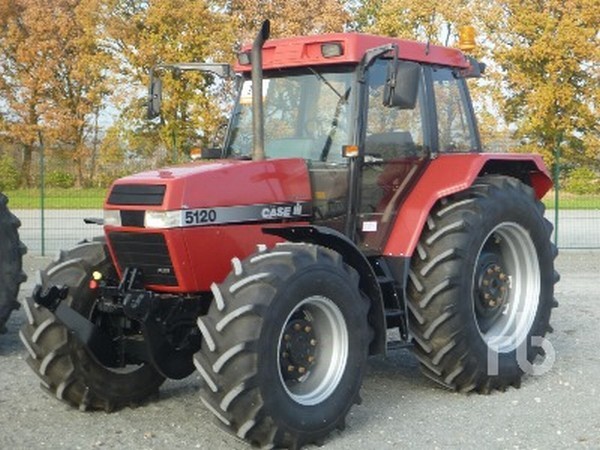

Case IH 5120 Maxxum

Production: 1990 - 1997

Production
Manufacturer:	Case IH
Factory:	Neuss, Germany

Case IH 5120 Power
Engine:	94 hp 70.1 kW
PTO (claimed):	77 hp 57.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	planetary
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional with air-conditioning.
Transmissions:	16-speed power shuttle
16-speed four-speed power shift
24-speed creeper

Capacity
Fuel:	44.9 gal 169.9 L
Hydraulic system:	20.1 gal 76.1 L

Hydraulics
Capacity:	20.1 gal 76.1 L
Pressure:	2756 psi 190.0 bar
Pump flow:	20.7 gpm 78.3 lpm

Tractor hitch
Rear Type:	II
Control:	electro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm):	7700 lbs 3492 kg
Front Hitch:	II*Optional
Front lift (at 24"/610mm):	5200 lbs 2358 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic wet disc
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@1870 1000@2200

Electrical
Charging system:	alternator
Charging amps:	65
Battery volts:	12
Battery AH:	105

Engine Detail
CDC 4 TA 390
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	239.3 ci 3.9 L
Bore/Stroke:	4.02x4.72 inches 102 x 120 mm
Power:	94 hp 70.1 kW
Fuel system:	direct injection
Compression:	16.5:1
Rated RPM:	2200
Idle RPM:	850-2355
Torque:	261.1 lb-ft 354.1 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12
Oil capacity:	11 qts 10.4 L
Coolant capacity:	18.6 qts 17.6 L

Dimensions
2WD Wheelbase:	94.3 inches 239 cm
4WD Wheelbase:	92.3 inches 234 cm
Length:	165.9 inches 421 cm
Width:	86.8 inches 220 cm
Height (cab):	106.1 inches 269 cm
Ground clearance:	18.4 inches 46 cm
Rear axle:	Flange
Rear axle:	Bar
Front tread:	60 to 88 inches 152 to 223 cm
Rear tread:	60 to 88 inches 152 to 223 cm (flange axle)
Rear tread:	60 to 100 inches 152 to 254 cm (bar axle)
